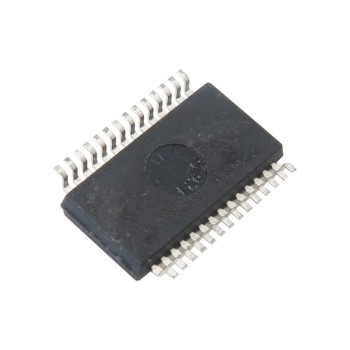

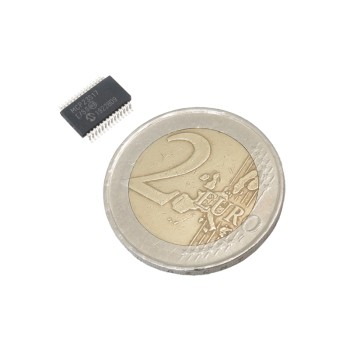

I/O Expander IC MCP23017-E/SS
- Product Code:SQ11709
- Availability: 1000
- $1.50
- Ex Tax:$1.50
Tags: MCP23017-E/SS I2C port expander, MCP23017-E/SS input/output expander chip, IC MCP23017-E/SS
The MCP23017-E SS IC is classified as an input-output expansion IC. This IC is a product of the Microchip Technology brand. It has 16 input-output pins. Its user interface is in the form of I2C. This IC has an output interrupt feature. It has a POR characteristic and its output is of the push-pull type. The source and sink output current is 25 milliamps with a clock frequency of 1.7 megahertz. The supply voltage for the expansion IC ranges from 1.8 volts to 5.5 volts. The package and footprint of this IC is 28-SSOP with surface mount or SMD installation, and the operating temperature range is from minus 40 degrees Celsius to 125 degrees Celsius.
:Application of the MCP23017-E SS Input-Output Developer IC
- Increasing I2C input/output ports
- Expanding embedded systems
:Specifications of the Input/Output Expander Chip MCP23017-E/SS
- Number of input/output: 16
- User interface: I2C
- Interrupt output: Yes
- Feature: POR
- Output type: Push-pull
- Output current (sink/source): 25 milliamps
- Maximum clock frequency: 1.7 megahertz
- Supply voltage: 1.8 volts to 5.5 volts
- Operating temperature: minus 40 degrees Celsius to 125 degrees Celsius
- Mounting type: Surface mount or SMD
- Package footprint: 28-SSOP
- Manufacturer: Microchip Technology
