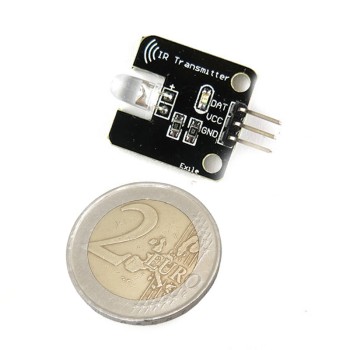

Infrared Transmitter Module (Remote Control Simulator)

The Infrared Transmitter Module (Remote Control Simulator) is a versatile tool specifically designed to send infrared signals. This Infrared Module can be easily used for remote communications and device control, making it ideal for various electronic projects, including Arduino-based applications. With the IR Remote Simulator, you can simulate infrared signals and control different projects effectively.

This Infrared Transmitter features an IR LED that emits light toward receivers, enabling both sending and receiving of infrared signals. This functionality is widely used in remote controls and other similar devices. The integrated IR Simulator Module allows you to control multiple devices with precision and ease.

A key advantage of this module is its compatibility with platforms such as Arduino, making it perfect for DIY projects and home automation systems. The module has a transmission range of 1 to 2 meters and operates efficiently at a 5 V supply voltage.

For anyone looking to build infrared control systems and leverage the capabilities of a Remote Control Simulator, this IR Remote Simulator is an ideal choice.

Applications of the Infrared Transmitter Module

1. Remote Device Control: Used in remote control projects for devices that support infrared signals.
2. Arduino Projects: Simulate remote control signals in Arduino projects to interact with other devices.
3. Home Automation: Implement in home automation systems to control various equipment such as TVs, air conditioners, or lights remotely.

Specifications of the Infrared Transmitter Module

1. Operating Voltage: 5 V DC
2. Emission Wavelength: 940 nm
3. Transmission Range: 1–2 meters (depending on environmental conditions and operating frequency)
4. Operating Frequency: 38 kHz
5. Signal Type: Digital
6. Infrared Center Wavelength: 850 nm to 940 nm
7. Infrared Emission Angle: 20°
8. Pins: 3 pins (1: DAT, 2: VCC, 3: GND)
9. Module Dimensions: 23.5 mm × 20.8 mm
10. Mounting Hole Diameter: 3 mm

Features of the Infrared Transmitter Module

1. Suitable for infrared communication and remote control
2. Compatible with Arduino platforms
3. Equipped with an LED to indicate signal transmission status
4. Operating Temperature: -25 °C to +85 °C
5. Storage Temperature: -30 °C to +100 °C
6. Infrared Transmission Distance: approximately 1.3 m (at 5 V and 38 kHz)
