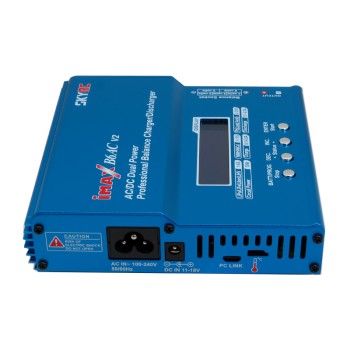

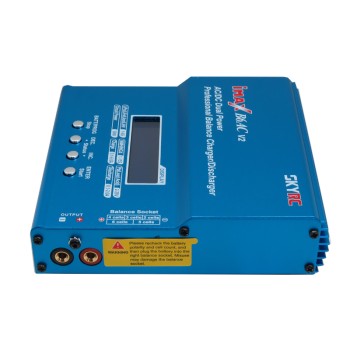

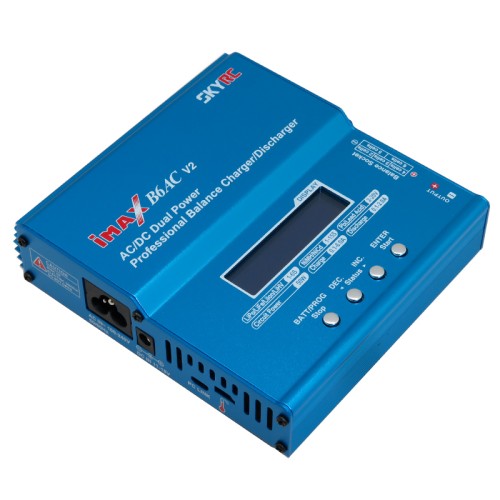

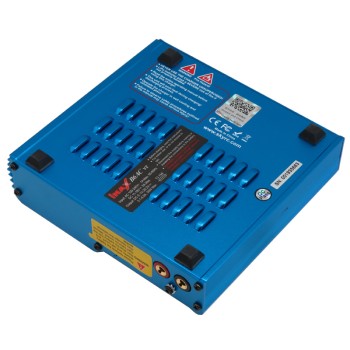

Imax B6AC V2 Battery Charger with Monitoring and Charge Control Via Computer

Imax B6AC V2 battery charger is a high-performance, microprocessor-controlled device designed for both charging and discharging a wide range of battery types. It features a built-in display and a balance port, allowing users to monitor and control the charging process directly from a computer. This advanced charger is a product of SKY RC and comes equipped with a dual input system for flexible charging options.

As a professional balance charger, it supports connection to standard AC power from 100V to 220V, and provides accurate voltage monitoring for each individual cell, enhancing battery safety. The Imax B6AC charger is especially suitable for lithium polymer batteries often used in multirotors like hexacopters.

If you're looking for a reliable and efficient battery charger and discharger, the Imax B6AC V2 is one of the best choices. It supports various battery types including NiCd/NiMH, Li-ion, LiPo, LiFe, and Pb. With its balance charger capability, programmable menu, digital display, and PC monitoring, it ensures precise control. Additional features include charging and discharging functions, support for up to 6S lithium cells, 5A output current, and a battery temperature sensor — making it an ideal solution for professional battery management.

Applications of the Imax B6AC V2 battery charger

1. Charging and discharging NiCd/NiMH, Li-ion, LiPo, LiFe, and Pb batteries

Specifications of the Battery charger and discharger

1. AC input voltage: 100–240 V or 11–18 V DC
2. Maximum charging power: 50 W
3. Maximum discharging power: 5 W
4. Charging current range: 0.1–5.0 A
5. Discharging current range: 0.1–1.0 A
6. Lithium polymer battery balance discharge current: 300 mA per cell
7. Supported Ni-MH/NiCd cells: 1 to 15
8. Supported Li-ion/LiPo cells: 1 to 6
9. Lead-acid battery voltage range: 2 to 20 V
10. Weight: 632 g
11. Dimensions: 135 × 144 × 36 mm
