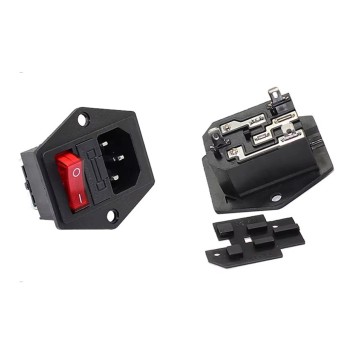

Computer Mount Inlet Rocker Power Switch IEC 3 Pin 320 C14 Connector

When building or repairing electronic equipment, a clean, safe, and professional AC power entry point is essential. The IEC 320 C14 Power Inlet with Rocker Switch combines a standard 3-pin male power socket and a illuminated (optional) rocker switch into a single, panel-mount module. This all-in-one design simplifies wiring, reduces installation time, and creates a professional finish for your project.

What Is This Component?

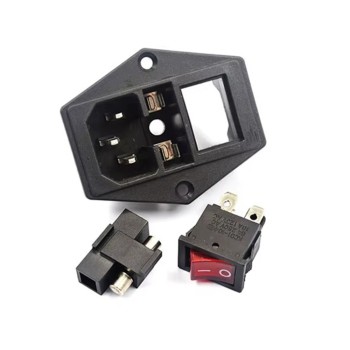

This is a combination Rocker Power Switch entry module that serves two critical functions:

IEC C14 Power Inlet: A 3-pin male connector that accepts a standard C13 power cord (the same type used on desktop computers and monitors).

Rocker Switch: A DPST (Double Pole, Single Throw) or SPST rocker switch that controls AC power to the connected device.

Installation Notes:

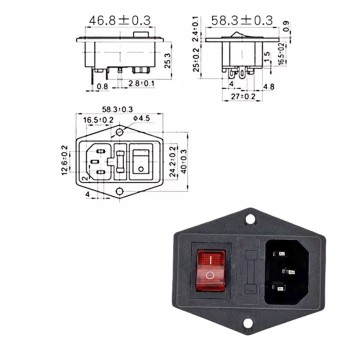

• Panel Cutout: Requires a standard-sized rectangular cutout (typically 19.5mm x 27.5mm, but verify with product datasheet).
• Mounting: Snaps or screws into place from the front panel.
• Wiring: Solder or use quick-connect terminals (0.187" or 0.250" spade connectors) to attach AC line, neutral, and ground wires.
• Safety Warning: Always disconnect from mains power before wiring. Ensure proper strain relief and insulation.

Power Switch Connector Applications:

1. Computer Mods & Custom PCs: Add a secondary power control or replace damaged inlets on older computers.
2. DIY Power Supplies: Build benchtop power supplies, variable transformers, or battery chargers.
3. Test Equipment: Create professional enclosures for oscilloscopes, signal generators, and meters.
4. Audio Equipment: Install in amplifiers, mixers, and recording gear.
5. Industrial Controls: Use in control panels, automation equipment, and machinery.
6. Repair & Replacement: Replace faulty power inlets on monitors, printers, and other electronics.

Power Switch Connector Specifications:

1. Rated Current: 10A (inlet) / 6A (rocker switch at 250V)
2. Rated Voltage: 250V AC (inlet) / 125V or 250V AC (rocker)
3. Plug Type: 3-Pin IEC320 C14 (male)
4. Grounding: Standard grounding terminal included
5. Switch Type: Rocker (2-position: ON/OFF)
6. Contact Material: Brass
7. Housing Material: Plastic (flame-retardant)
8. Surge Protection: No
9. Overload Protection: No
10. TerminalsSolder or quick-connect (spade)

Key Features:

1. Integrated Design: Combines IEC C14 power inlet and rocker power switch in a single compact module.
2. Electrical Ratings: Inlet rated at 10A / 250V AC; Rocker switch rated at 6A / 250V AC or 10A / 125V AC.
3. Standard Grounding: Includes grounding connection for safety compliance.
4. Durable Construction: Made from high-quality plastic housing with brass conductive terminals.
5. 3-Pin C14 Plug: Standard male IEC 320 C14 inlet accepts standard female C13 power cords (computer-style cables).
6. Easy Mounting: Designed for standard panel cutouts in computer chassis, power supplies, and equipment enclosures.
