ICM-20948 9 Axis Motion Tracking Module

ICM-20948 9 Axis Motion Tracking Module
Click image for Gallery
  • Brands CJMCU
  • Product Code:SQ8063
  • Availability: 9997
  • $9.99
  •
  • Ex Tax:$9.99
+
-

0 reviews / Write a review

Tags: ICM 20948, CJMCU, icm-20948 module

Description:

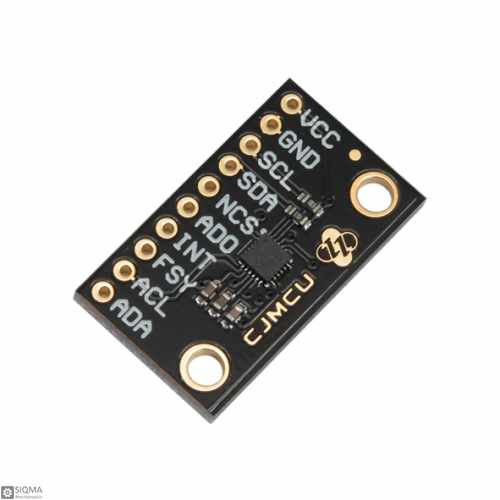

ICM-20948 9 Axis Motion Tracking Module is an ultra-low power consumption board to sense and tracking 9 axis MEMS motion, which is based on ICM-20948, world’s Lowest Power 9axis motion sensor chip. The ICM-20948 chip is known as a multi-chip module (MCM) and consists of 3-axis gyroscope, 3-axis accelerometer, 3-axis compass, with a built-in Digital Motion Processor™ (DMPTM) which can communicate with microcontrollers and Arduino boards.
CJMCU ICM-20948 IMU supports an auxiliary I2C interface to external sensors, on-chip 16-bit ADCs, programmable digital filters, an embedded temperature sensor, and programmable interrupts. The device features an operating voltage range down to 1.71V. Communication ports include I2C and high speed SPI at 7 MHz
consisting of two dies integrated into a single QFN package. One die houses a 3-axis gyroscope, a 3-axis accelerometer, and a Digital Motion Processor™ (DMP). The other die houses the AK09916 3-axis magnetometer from Asahi Kasei Microdevices Corporation.
This module can be interfaced to external sensors, on-chip 16-bit ADC, programmable digital filters, an embedded temperature sensor, and programmable interrupts through an auxiliary I2C interface.

ICM-20948 Module Application:

  1. Smartphones
  2. Tablets
  3. Wearable Sensors
  4. IoT applications

ICM-20948 module Features:

  1. Lowest Power 9-Axis Device at 2.5 mW
  2. 3-Axis Gyroscope with Programmable FSR of ±250 dps, ±500 dps, ±1000 dps, and ±2000 dps
  3. 3-Axis Accelerometer with Programmable FSR of ±2g, ±4g, ±8g, and ±16g
  4. 3-Axis Compass with a wide range to ±4900 µT
  5. Onboard DMP (Digital Motion Processor )
  6. Android support
  7. Auxiliary I2C interface for external sensors
  8. On-Chip 16-bit ADC and Programmable Filters
  9. 7 MHz SPI or 400 kHz Fast Mode I²C
  10. Digital-output temperature sensor
  11. VDD operating range of 1.71V to 3.6V
  12. MEMS structure hermetically sealed and bonded at a wafer level

Documents:

  1. ICM-20948 Arduino link
  2. icm-20948 datasheet PDF
Sensor Parameters
Compass Range ±4900 µT
Gyroscope Range ±250 dps, ±500 dps, ±1000 dps, and ±2000 dps
Acceleration Range ±2g, ±4g, ±8g, and ±16g
Electrical Parameters
Voltage 1.71 - 3.6V
Board Parameters
ADC 16-bit
Physical Parameters
Weight 3g
