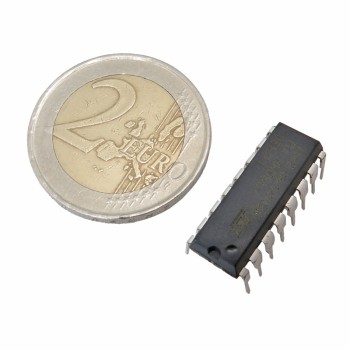

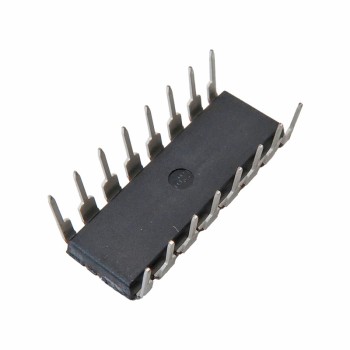

L293D motor driver IC

L293D motor driver IC
Click image for Gallery
  • Product Code:SQ1115
  • Availability: 1000
  • $0.50
  •
  • Ex Tax:$0.50
This product has a minimum quantity of 10
+
-

0 reviews / Write a review

Tags: IC driver, L293D driver, L293D chip

The L293D motor driver IC is a four-channel integrated driver designed to support high voltage and current. Using this driver, you can utilize DC motors and power supplies with a maximum voltage of 36 volts in your project. Each channel can provide up to 600 milliamps of current, and the L293D chip is also known as an H-Bridge. Overall, an H-Bridge is a circuit that enables the application of voltage to an output such as a motor. The use of the L293D chip results in very low energy consumption and high power from the driver shield

Application of L293D IC driver:

  1. Stepper motor drivers
  2. DC motor drivers
  3. Latch relay drivers

Specifications ic l293d dip:

  1.  Voltage supply range: 4.5 ~ 36 volts
  2. Separate power supply for inputs
  3. Static protection feature
  4. Inputs protected against high noise
  5. Output current of one amp per channel
  6. Maximum current of 2 amps for each input
  7. Storage temperature: -60 ~ 150 degrees Celsius






Documents:

L293D Datasheet
