15 PCS HX711 Load Cell Analog to Digital Converter Module [24 bit]

15 PCS HX711 Load Cell Analog to Digital Converter Module [24 bit]
  • Product Code:SQ2051
  • Availability: In Stock
  • $6.20
  •
  • Ex Tax:$6.20
+
-


Tags: Load Cell Amplifier, Weighing Sensor, Analog to Digital Converter, ADC, 24 bit ADC, 2 Channel ADC, HX711

Description:

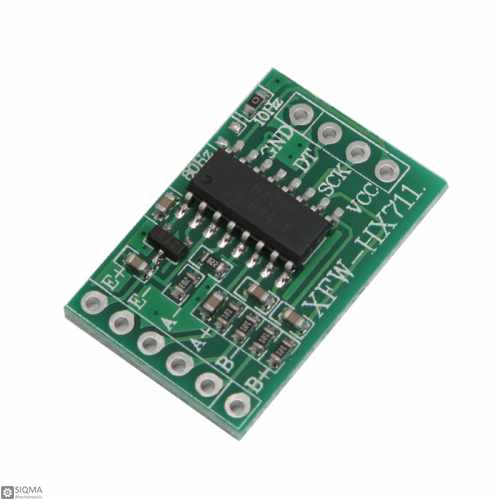

The HX711 Load Cell Amplifier is a small breakout board for the HX711 IC that allows you to easily read load cells to measure weight. By connecting the amplifier to your microcontroller you will be able to read the changes in the resistance of the load cell, and with some calibration, you’ll be able to get very accurate weight measurements simply it amplifies the small signals that come from the load cell. This can be handy for creating your own industrial scale, process control or simple presence detection.
Load cells use a four wire Wheatstone bridge to connect to the HX711.

Features:
Chip: HX711
Resolution: 24 bit
Channel: 2 Channel
Input Voltage: 2.7V ~ 5V
Operation Current: <1.5mA
Selectable 10SPS or 80SPS output data rate
Simultaneous 50 and 60Hz supply rejection
Pin Number: 10 Pin
Size: 35mm x 21mm

Pinouts:
Analog Side:
E+: Excitation positive
E-: Excitation negative
A-: Channel A Negative Input
A+: Channel A positive Input
B-: Channel B Negative Input
B+: Channel B positive Input

Digital Side:
GND: 0V / Ground Power Connection
DT: Data IO Connection
SCK: Serial Clock Input
VCC: Power Input

Package Include:
15 x HX711 24 bit A/D Weighing Sensor Module

Electrical Parameters
Channels 2 Channel
Input Voltage 2.7V ~ 5V
Working Current <1.5mA
Board Parameters
ADC 24 bit
Main Chip HX711
Pin Count 10 Pin
Physical Parameters
Size 35mm x 21mm
