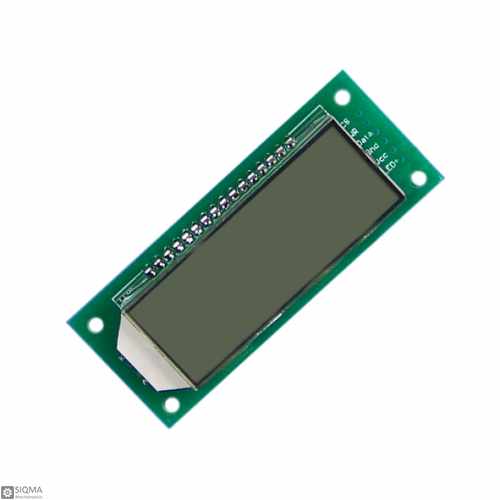

HT1621 7-Segment Display Module [6 Digit] [5V]

HT1621 7-Segment Display Module [6 Digit] [5V]
Click image for Gallery
  • Product Code:SQ6004
  • Availability: 990
  • $1.70
  • Ex Tax:$1.70
This product has a minimum quantity of 5

Tags: Seven Segment, Segment Display, 7segment

The HT1621 is a 6 bit (digit) 7-segment display module. This module is compatible with your favorite microcontrollers by using 3 wire SPI communication, which is widely used in multi-meter, voltage monitor, solar power monitor, clock, thermometer, electronic measuring devices, automotive, etc. By using LED backlight is suitable in dark environment. This module runs on 4.7~5.2V DC, 0.4mA without back-light (power saving mode) and 4mA with back-light. It's a very compatible module which can be directly connected to Arduino board, 8051 and AVR boarda. This module is featured with a simple interface and is easy to drive (two power supply 5v, three data lines, one backlight control pin). It does not require power saving (no need for backlight, only a few hundred to several tens of uA).The module has only three I/O port to control display and it can be changed the number or simple characters at any time. HT1621 could be refreshed by applying a dedicated driver, without the need to refresh the software in the microcontroller program, so you only need to refresh the display content. This releases the CPU resources to do other operations.

Driver IC: HT1621
Input Voltage: 5V
Input Current: 0.4mA without backlight, and 4mA with backlight
Interface: 3-wire SPI
Color: White Background
Screen Size: 1.4inch
Size: 77mm x 31mm
Compatibility: can be directly connected to Arduino board, 51, AVR board.

Thermometers, multimeter, electronic scales, DIY projects, voltage monitor, solar power monitor, clock, thermometer, electronic measuring device, automotive, etc.

Package Include:
1 x HT1621 6 Digit 7 Segment Display

Display Properties
Color White Background
Driver IC HT1621
Screen Size 1.4inch
Interface Type 3-wire SPI
Electrical Parameters
Input Current 0.4mA (without backlight) , 4mA (with backlight)
Input Voltage 5V
Physical Parameters
Size 77mm x 31mm
