HMC5883L 3-Axis Magnetometer Compass Sensor Module [3V-5V]

HMC5883L 3-Axis Magnetometer Compass Sensor Module [3V-5V]
  • Brands GY
  • Product Code:SQ1058
  • Availability: In Stock
  • $1.90
  •
  • Ex Tax:$1.90
This product has a minimum quantity of 4
+
-


Tags: Magnetometer Compass Sensor, Digital Sensor, 3 Axis Compass, QMC5883L, Electronic Compass, GY271

Description:

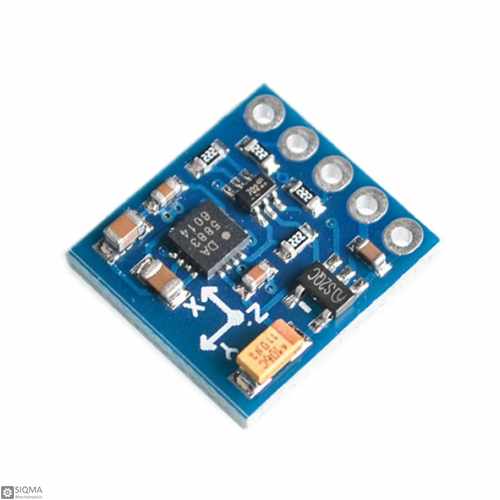

GY-271 HMC5883L 3-Axis Magnetometer Compass Sensor Module [3V-5V] is a high sensitivity magnetic sensor that uses hall sensing technology to detect and measure the three geomagnetic axes. This sensor module is designed based on the HMC5883L 3-Axis Digital Compass chip, that converts any magnetic field to a differential voltage output on 3 axes. The HMC5883 chip operates based on Honeywell’s Anisotropic Magnetoresistive (AMR) technology, that provides more accuracy in-axis sensitivity and linearity than other magnetic sensors. This chip is comprised of high-resolution magneto-resistive sensors with dedication amplification, self degaussing strap drivers, offset cancellation, and a 12-bit ADC.
This module has an internal voltage regulator for the power supply requirement so can be supplied with 3V to 5V DC to measure both the direction and the magnitude of Earth’s magnetic fields from -8 gauss up to +8 gauss with ±2 miligauss accuracy that can achieve 1 to 2-degree accuracy in navigation. This compass module can communicate with microcontroller and Arduino boards trough the I2C and SPI serial bus interface. This sensor is an ultra-low power consumption with a tiny size that is specialized for portable or battery supplied devices such as robot navigation systems, cellphone navigation system, tablet navigation system, notebook navigation system, automatic navigation systems, and portable navigation devices

Features:
Model: GY-271
Chip: HMC5883L
Input Voltage: 3V ~ 5V
Sleep mode current: 2uA
Measurement mode current: 100uA
Output Type: Digital
ADC: 12 bit
Maximum output frequency: 160Hz
Heading angle accuracy: 1° ~ 2°
Resolution: 2 milli-gauss
Magnetic Field Range: -8 gauss ~ +8 gauss
Interface: I2C
Pin Number: 5 Pin
Size: 14.5mm x 13.5mm

Package Include:
1 x GY-271 Compass Magnetometer Module
1 x Pin header

Interfaces
Interface Type I2C
Sensor Parameters
Accuracy 1° ~ 2°
Internal ADC 12 bit
Measuring range -8 gauss ~ +8 gauss
Output Type Digital
Resolution 2 milli-gauss
Electrical Parameters
Frequency 160Hz
Input Voltage 3V ~ 5V
Current Measurement mode: 100uA , Sleep mode: 2uA
Board Parameters
Main Chip HMC5883L
Pin Count 5 Pin
Physical Parameters
Size 14.5mm x 13.5mm
