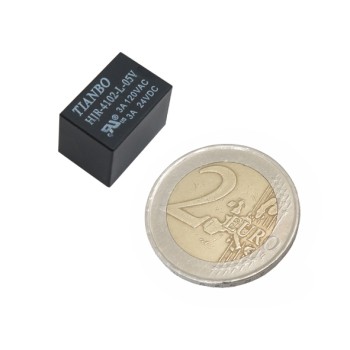

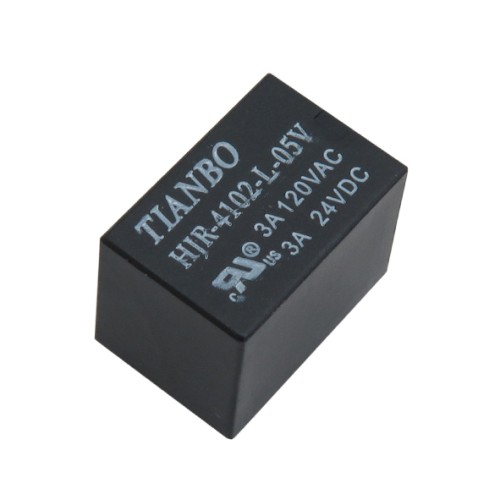

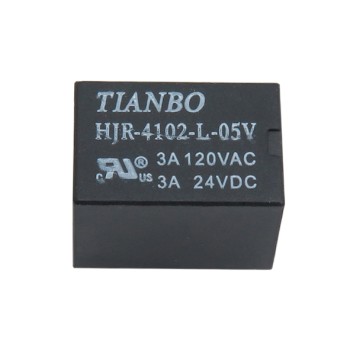

5V 6-Pin Relay HJR-4102-L

a relay or electrical switch acts as a circuit protector and can protect electronic equipment. it also has the capability of automatic adjustment. the necessary values for activating the relay are written on each relay. the input and output voltages are also specified. relays are produced in various shapes and different working values, and to know their exact values, one should refer to their datasheet. the hjr-4102-l-05v relay is a 1-contact relay with a 5-volt coil, 6 pins, and a current capacity of 3 amperes.

applications of the 5V 6-Pin Relay HJR-4102-L:

1. automobiles
2. home appliances
3. remote control
4. communication devices
5. audio equipment
6. office equipment and supplies

specifications of the Relay HJR-4102-L:

1. switching voltage: 240 volt ac and 60 volt dc
2. switching capacity: 360 va
3. coil voltage: 5 volt dc
4. dependent load: 3a 120 ac, 3a 24v dc
5. internal resistance (ri): 125 ohm
6. maximum switching current: 5a
7. input power (operation): 0.2w
8. test voltage: 1000 volt
9. number of pins: 6 pins
10. contact: spdt
11. material: plastic, metal
12. color: black
13. weight: 19 grams
14. size: 15.7x11.4x10.4 mm

Documents:

datasheet for Relay HJR-4102-L
