Green UV Protective Coating for PCB

A solder mask is used to create a protective layer on a printed circuit board (PCB). Care must be taken to avoid applying it on connection paths and soldering points.

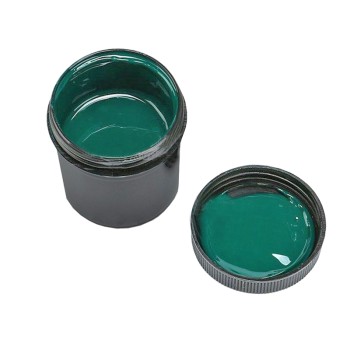

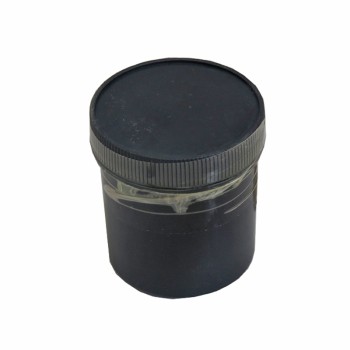

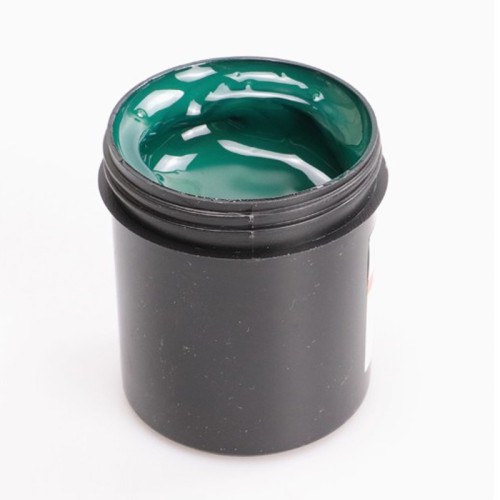

This 100g green UV protective coating suitable for PCB turns the board green when exposed to UV light. Using a PCB solder mask protects the board from oxidation and enhances its appearance.

Shake the solder mask well before use, and keep in mind that the UV protective coating cannot be diluted.

Applications of the PCB solder mask

1. PCB design
2. PCB fabrication

Specifications of the Green UV Protective Coating for PCB

1. Color: Green
2. Weight: 100g
3. Hardness: 5H
4. Viscosity: 200 ± 50 PS at 25°C with good thixotropy
5. Particle size: <15 nm
6. Heat resistance during soldering: 260°C ± 5°C for 10 seconds, repeated 3 times
7. Storage temperature: 22 ± 2°C
8. Storage humidity: 55 ± 5% RH
9. Curing conditions: 80 W/cm² high-pressure mercury lamp, 10 cm distance, irradiation speed 4–6 m/min
10. Adhesion: 100/100
11. Solvent resistance: withstands trichloroethane boiling for 2 minutes
12. Insulation resistance: greater than 1 × 10¹³ Ω after 72 hours at 40°C, 95% RH
13. Dielectric strength: over 500 V/mil

Note: Mix thoroughly before use.

Special note: This coating cannot be diluted.
