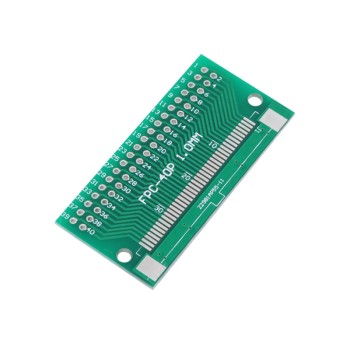

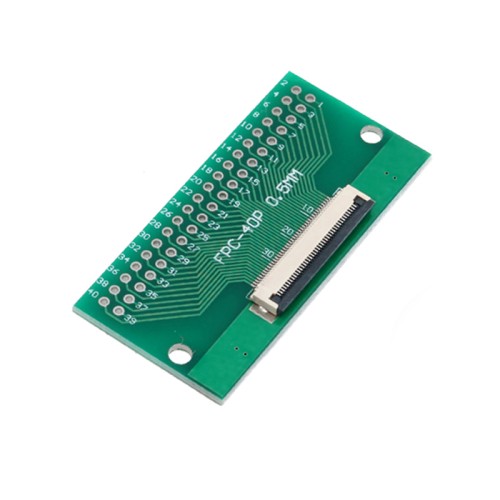

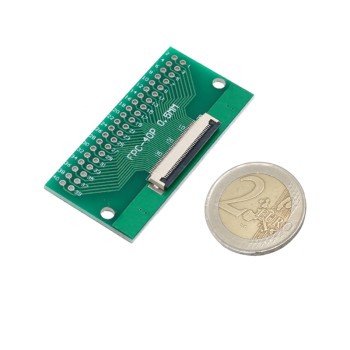

40pin FPC Adapter Board with 0.5mm Standard and FPC Connector

Adapter boards or converter boards are used to convert pins with surface-mounted or pin-mounted installations. this converter board or adapter board is used to convert fpc flat cables to fpc pin connections with a 0.5 mm standard, and sometimes it is necessary to access each connection of the fpc flat cable, which is facilitated by the fpc adapter. the fpc adapter, considering the number of pins of the flat cable, requires pins with a defined standard, which is provided by this adapter as a 12-pin fpc adapter.

Application of Standard 0.5mm 40-pin FPC adapter board with FPC connector:

1. monitor
2. controller systems

Specifications of the 40-pin FPC converter board:

1. screw hole: 2.54 mm
2. fiberglass board
3. board thickness: 1.6 mm
4. number of pins: 40
5. standard pitch: 0.5 mm
6. dimensions: 26 by 54 mm
7. includes connector
