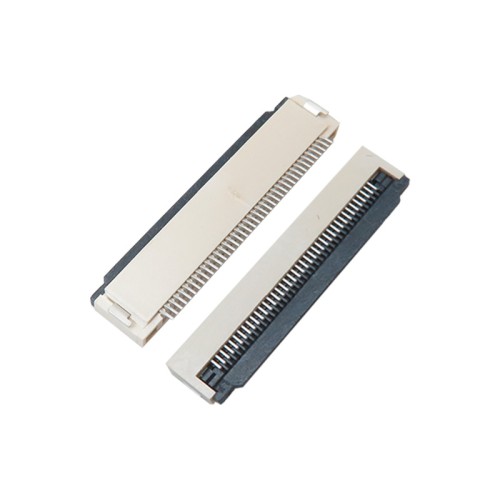

FPC 40-Pin Connector 0.5mm Pitch

Nowadays, with the miniaturization of electronic components and the advancement of electronic technology, the use of Flat Cable Connectors is increasing day by day. Their high flexibility, the complexity of circuits, and ease of use make flat cables a practical solution for replacing soldered connections with FPC 0.5mm Pitch Connectors. Quick connections are provided using one or more flat cables, each consisting of a specific number of copper strands covered with plastic insulation.

FPC 40-Pin Connectors are designed to connect flat cables to PCBs for data transmission. A Top & Bottom Contact Connector allows secure connections, where one side of the FPC 40-Pin Connector connects to the flat cable, and the other side is either soldered onto the PCB or connected via another flat cable to a matching connector.

These FPC 0.5mm Pitch Connectors provide reliable, efficient, and compact connections in modern electronic devices, making them essential components for high-density circuit designs.

Applications of the FPC 40-Pin Connector

1. Connecting touch screens
2. Printers
3. Mobile devices
4. Linking two points in a circuit
5. Most commonly used in TFT LCDs and control circuits

Specifications of the Flexible Printed Circuit Connector

1. Pin Count: 40
2. Pitch: 0.5 mm
3. Body Material: Thermoplastic (TP)
4. Mounting Style: SMT
5. Operating Temperature Range: -55°C or -40°C to +85°C or +105°C
6. Socket Type: Bottom Connect
