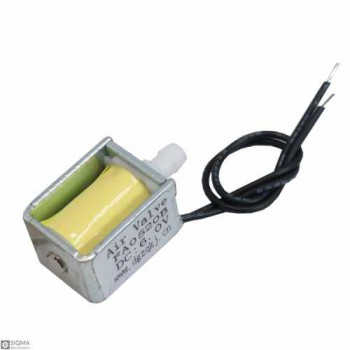

Fa0520B Micro Solenoid Valve [Optional Voltage]

Fa0520B Micro Solenoid Valve [Optional Voltage]
Click image for Gallery
  • Product Code:SQ9690
  • Availability: 9958
  • $1.20
  • Ex Tax:$1.20

Available Options

This product has a minimum quantity of 6

Tags: Solenoid Valve, Control Valve, Fluid Valve, Electromagnetic Switch, Micro Solenoid Valve, Micro Valve, Valve

A solenoid valve is an electromechanically operated valve. Solenoid valves differ in the characteristics of the electric current they use, the strength of the magnetic field they generate, the mechanism they use to regulate the fluid, and the type and characteristics of fluid they control. The mechanism varies from linear action, plunger-type actuators to pivoted-armature actuators and rocker actuators. The valve can use a two-port design to regulate flow or use a three or more port design to switch flows between ports. Multiple solenoid valves can be placed together on a manifold. Solenoid valves are the most frequently used control elements in fluidics. Their tasks are to shut off, release, dose, distribute or mix fluids. They are found in many application areas. Solenoids offer fast and safe switching, high reliability, long service life, good medium compatibility of the materials used, low control power and compact design.
This solenoid valva is a small electrical valve, has normally close status and can operates at 5 to 45 degree centogrades.

Model: Fa0520B
Rated Voltage: 4.5Vdc, 6Vdc, 12Vdc, 24Vdc
Switch State: Normally Close
Pressure range: 0 ~ 350mmhg
Fluid: air
Operating Temperature: 5℃ ~ 45℃
Operating Humidity: 30% ~ 80% RH
Life Time: 100000 times
Size: 28mm x 15mm x 13mm

Package Include:
1 x Fa0520B Micro Solenoid valve

Electrical Parameters
Voltage 6V DC
Switch and Valve Features
Operating Field Air
Pressure Range 0 ~ 350mmhg
Switch State Normally Close
Type 4.5Vdc, 6Vdc, 12Vdc, 24Vdc
Physical Parameters
Size 28mm x 15mm x 13mm
Life Time 100000 times
Environmental Conditions and Safety
Operating Temprature 5℃ ~ 45℃
Operating humidity 30% ~ 80% RH
