Arduino Esplora
Click image for Gallery
- Product Code:SQ2126
- Availability: 9999
- $34.99
- Ex Tax:$34.99
Tags: Arduino Esplora, ATmega32u4 Arduino, Arduino
Description:

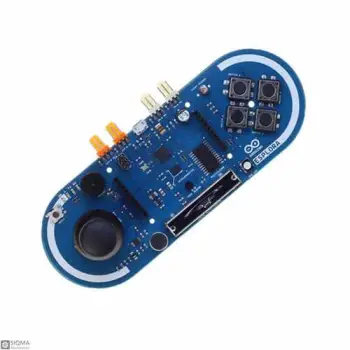

The Arduino Esplora is a microcontroller board derived from the Arduino Leonardo. The Esplora differs from all preceding Arduino boards in that it provides a number of built-in, ready-to-use set of onboard sensors for interaction. It's designed for people who want to get up and running with Arduino without having to learn about the electronics first. For a step-by-step introduction to the Esplora, check out the Getting Started with Esplora guide.
The Esplora has onboard sound and light outputs, and several input sensors, including a joystick, a slider, a temperature sensor, an accelerometer, a microphone, and a light sensor. It also has the potential to expand its capabilities with two Tinkerkit input and output connectors, and a socket for a color TFT LCD screen.
Like the Leonardo board, the Esplora uses an Atmega32U4 AVR microcontroller with 16 MHzcrystal oscillator and a micro USB connection capable of acting as a USB client device, like a mouse or a keyboard.
In the upper left corner of the board there is a reset pushbutton, that you can use to restart the board.
There are four status LEDS:
There are four status LEDS:
ON [green]: indicates whether the board is receiving power supply
L [yellow]: connected directly to the microcontroller, accessible through pin 13
RX and TX [yellow]: indicates the data being transmitted or received over the USB communication.
Like the other arduino boards, arduino esplora advantages and disadantages are described as below:
The board contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable to get started but it features lack of storage space.
The board contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable to get started but it features lack of storage space.
The Esplora has built-in USB communication; it can appear to a connected computer as a mouse or keyboard, in addition to a virtual (CDC) serial / COM port.
The most prominent feature of Esplora is the addition of several built-in input devices and sensors, as well as several input and output interfaces. Also made into the shape of a game console control panel. The components added to the board include:
The most prominent feature of Esplora is the addition of several built-in input devices and sensors, as well as several input and output interfaces. Also made into the shape of a game console control panel. The components added to the board include:
1. Joystick with XY axis and center button, analog input using potentiometer
2. Four normally open buttons
3. A linear potentiometer
4. Microphone
5. Photosensitive tube
6. Temperature Probe
7. Three-axis accelerometer
8. Buzzer
9. RGB three-color LED
Arduino Esplora Application:
- control your computer
- control your mouse
- control your keyboard
- control your outputs and sensor
Arduino Esplora Board Features:
- Microcontroller: ATmega32u4
- Operating Voltage: 5V
- Flash Memory: 32 KB of which 4 KB used by bootloader
- SRAM: 2.5 KB
- EEPROM: 1 KB
- Clock Speed: 16 MHz
- Size: 164.04 mm x 60 mm
Documents:
| Electrical Parameters | |
| Microcontroller | ATmega32u4 |
| Operating Voltage | 5 V |
| Board Parameters | |
| Clock Speed | 16 MHz |
| EEPROM | 1 KB |
| FLASH | 32 KB of which 4 KB used by bootloader |
| SRAM | 2.5 KB |
| Physical Parameters | |
| Size | 164.04 mm x 60 mm |
| Length | 164.04 mm |
| Width | 60 mm |
