ESP32P4+ESP32-C6 High-Performance Core Board

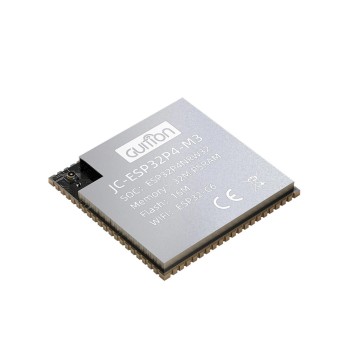

The ESP32-P4 + C6 module is one of the most advanced development platforms by GUITION, combining high-performance processing with modern wireless connectivity in a single integrated board. It is designed to handle heavy computational tasks such as image processing, AI, and graphical systems, while simultaneously supporting state-of-the-art wireless standards like Wi-Fi 6 and Bluetooth LE.

At the heart of this module is the ESP-P4 chip, a multi-core RISC-V processor running up to 400 MHz, equipped with hardware accelerators for AI and machine learning, enabling on-device ML inference. The chip also leverages high-speed SRAM and low-power sections for optimized energy efficiency.

This platform supports high-speed interfaces including USB OTG/Host, LCD controller, Camera Interface, Ethernet 10/100, SD/MMC, SPI, I²C, UART, as well as MIPI-DSI and MIPI-CSI, making it ideal for advanced graphical, imaging, and vision projects. Full security features, such as Secure Boot, flash encryption, hardware cryptography accelerators, and key management, ensure safe deployment for industrial and sensitive applications.

The C6 chip handles the wireless communication segment, offering high-efficiency Wi-Fi 6, low-latency connectivity, and enhanced performance in dense network environments. It also supports Bluetooth 5.0 LE for wearables, smart gadgets, and low-power IoT devices, with WPA3 encryption ensuring secure, reliable wireless connections.

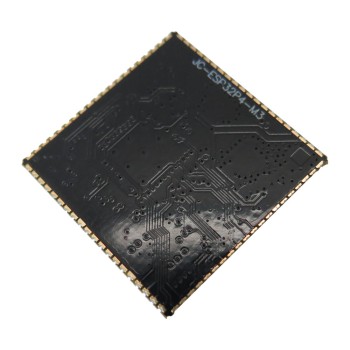

The module features a castellated edge design for easy PCB mounting and soldering, along with a metal shield for EMI protection and ESD safety. The combination of these two chips creates a complete development platform capable of serving as an IoT gateway, smart central controller, industrial wireless node, image processing system, robotics controller, or interactive display device.

Educational Note – MIPI-DSI Interface:

MIPI-DSI (Mobile Industry Processor Interface – Display Serial Interface) is a high-speed standard interface for connecting displays (LCD or AMOLED) directly to processors like ESP32-P4. It allows efficient, low-power transmission of images without needing an intermediary IC.

• Display Interface Comparison:
• RGB Parallel: More pins, limited speed, older technology.
• LVDS: Industrial standard, fewer wires, medium speed.
• MIPI-DSI: Minimal pins, high speed, modern mobile displays.
• MIPI-DSI on ESP32-P4:
• ESP32-P4 includes a built-in MIPI-DSI controller.
• Displays can be connected directly, without extra ICs.
• Ideal for portable devices, smart monitors, AR glasses, and IoT devices with graphical interfaces.

 ESP32 P4 Module Application:

1. Smart Home and Industrial Automation Systems
2. Robots, Mechanical Arms, and Interactive Systems
3. Medical Devices and Smart Wearables
4. Machine Vision and Edge Image Processing
5. Smart Speakers and Voice-Controlled Systems
6. IoT Gateways with Wireless and Wired Connectivity
7. Next-Generation Consumer Devices (e.g., interactive terminals, smart displays)

 ESP32 C6 Module Specification:

1. Manufacturer: GUITION
2. Main Module: JC-ESP32P4-M3
3. Processor: ESP32-P4: Dual-core RISC-V, up to 400 MHz, with AI acceleration and floating-point computation units.
4. ESP32-C6: Single-core RISC-V, supporting Wi-Fi 6, Bluetooth 5.3, Zigbee, and Thread.
5. Memory: PSRAM: 32 MB
6. Flash: 16 MB
7. HP ROM: 128 KB
8. LP ROM: 16 KB
9. HP L2 Cache: 768 KB
10. LP SRAM: 32 KB
11. TCM: 8 KB
12. Operating Voltage: 3.3 V
13. Operating Temperature: -20°C to +70°C
14. Dimensions: 27 × 27 × 3.4 mm
15. Connectivity and Interfaces: Extensive GPIO header, MIPI-DSI display interface, MIPI-CSI camera interface
16. Security Features: Secure Boot, Flash Encryption, Key Management Unit (KMU), Hardware Cryptography, Accelerators
17. Antenna Type: U.FL
