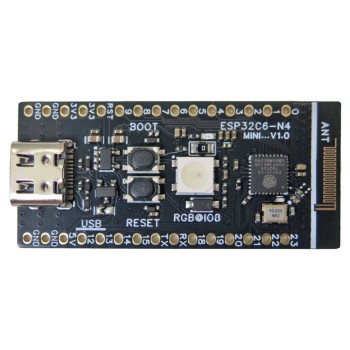

ESP32 C6 Mini Development Board

The ESP32 C6 Mini development board is an advanced platform for Internet of Things (IoT) projects, simultaneously supporting 2.4GHz Wi-Fi, Bluetooth Low Energy (BLE), Zigbee, and Thread. With its fast and low-power processor, this board enables the creation of stable, multi-device smart networks without the need for additional modules. Simultaneous communication with multiple wireless protocols allows this WiFi and BLE IoT board to serve as the central hub for smart home, industrial, and IoT research projects.

This ESP32 C6 Mini N4 board, a product of WeAct Studio, is compatible with popular development environments such as the Arduino IDE, ESP-IDF, and MicroPython, making programming and testing projects fast and easy. Support for extensive libraries and sample codes further simplifies the development process for engineers and enthusiasts. Its compact and lightweight design makes it suitable for use in robotics, sensors, wearable devices, and industrial automation. With support for mesh networks via Zigbee and Thread, it ensures stable and extensive communication between devices.

The ESP32-C6-N4 board is not only suitable for beginners but also allows professional developers to leverage its advanced features to build smart networks, complex sensors, robots, and autonomous devices with local processing, making their IoT projects faster, smarter, and more stable.

ESP32 C6 Mini N4 Application:

1. Smart Home and Building Automation
2. Environmental Monitoring Sensors and Devices
3. Robotics and Motor Control
4. Wearable and Portable IoT Devices
5. Mesh Networks with Zigbee and Thread

IoT Board with WiFi and BLE Specification:

1. Processor: 32-bit single-core RISC-V with operating frequency up to 160 MHz
2. Internal Flash Memory: 4 MB
3. Static RAM: 512 KB
4. Internal ROM: 320 KB
5. Low Power SRAM: 16 KB
6. Wi-Fi: Wi-Fi 6 standard (802.11ax) on the 2.4 GHz band
7. Bluetooth: Version 5.0 LE with support for Extended Advertising
8. Wireless Protocols: Supports 802.15.4 for Zigbee 3.0 and Thread 1.3
9. I/O: 22 GPIO pins
10. Interfaces: SPI, I2C, I2S, UART, PWM, ADC
11. USB Interface: For development and debugging
12. Security Features: Secure Boot, Flash Encryption, Hardware Cryptography Accelerator (AES, SHA, RSA, ECC)
13. Power Consumption: Deep sleep current approximately 5 µA
14. Operating Voltage: 3.3V to 5V
15. Logic Level: 3.3V
16. Dimensions: 20.6 × 45.1 mm
17. Wi-Fi 6 with Target Wake Time (TWT) for energy saving
18. Multi-protocol coexistence for simultaneous use of Wi-Fi, Bluetooth, and Zigbee/Thread
19. Support for Mesh Networks
20. Software Compatibility: ESP-IDF and Arduino

Documents:

Datasheet ESP32 C6 Mini N4
