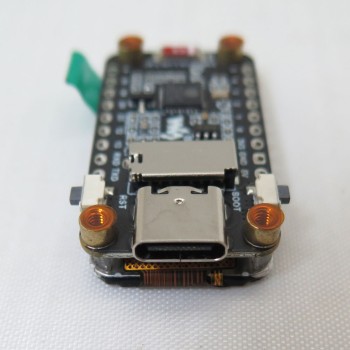

ESP32-C6 Development Board with 1.47-Inch LCD Display

The ESP32-C6 Development Board with 1.47-inch LCD and RGB LEDs by Waveshare is a complete and advanced platform for Internet of Things (IoT) projects, offering a wide range of features in a compact form factor. With its lightweight and compact design, this board combines a powerful processor, stable wireless connectivity, and practical onboard peripherals, making it easy to develop smart and interactive projects.

The onboard 1.47-inch TFT LCD display allows real-time visualization of information, sensor data, and graphics, making it ideal for IoT dashboards, interactive information systems, and educational projects. In addition, the built-in RGB LEDs provide attractive lighting effects and can be used as status indicators or visual alerts, adding more interaction and visual appeal to your projects.

With the microSD card slot, the board can store data, files, and logs locally without requiring an internet connection or external server. This feature greatly simplifies the development of data-logging applications and is highly useful for educational, research, and industrial projects. The ESP32-C6 chip delivers high performance with low power consumption, ensuring fast and stable program execution, while Wi-Fi and BLE connectivity enable seamless communication with networks and devices such as smartphones, sensors, and other IoT equipment.

A wide range of GPIO pins allows easy connection of sensors, motors, LEDs, and peripheral modules, giving developers the freedom to build robotics projects, industrial automation systems, and smart home solutions. Full compatibility with Arduino IDE and ESP-IDF makes this ESP32-C6-LCD-1.47 development board with RGB LEDs suitable for both beginners and professional developers.

Thanks to extensive libraries and example codes, even complex projects can be implemented quickly. With this ESP32-C6 Development Board, you can build practical, interactive, and intelligent projects with appealing visuals and reliable performance—from educational projects to industrial systems and smart home applications. The board also includes un-soldered pin headers, giving you full flexibility for installation and customization.

ESP32-C6 with RGB LED Application:

1. Smart Home and Industrial Automation
2. Interactive and Educational Projects
3. Robotics and Control Systems
4. Data Storage and Logging
5. Wearable Devices and Smart Gadgets
6. (IoT) → Internet of Things (IoT) Projects

Smart home automation ESP32-C6 Specification:

1. Main Chip: ESP32-C6
2. Processor: Single-core
3. Operating Frequency: 160 MHz
4. Memory:512 KB SRAM, 8 MB Flash
5. Built-in RGB LED: For lighting effects and project status indication
6. Display: 1.47-inch TFT LCD
7. Resolution: 172 × 320 pixels
8. Controller: ST7789
9. Interface: SPI
10. Supported Protocols: TCP/IP, MQTT, HTTP
11. Multipurpose I/O Pins: Digital, PWM, ADC
12. SD Card Slot: Local storage
13. Wireless Connectivity: Wi-Fi 2.4 GHz (802.11 b/g/n)
14. Bluetooth Low Energy (BLE 5.0)
15. Operating Voltage: 3.3 V
16. Low Power Consumption: Suitable for battery-powered projects
17. Compatible Development Environments: Arduino IDE, ESP-IDF, MicroPython
18. Dimensions: 36 × 20 mm

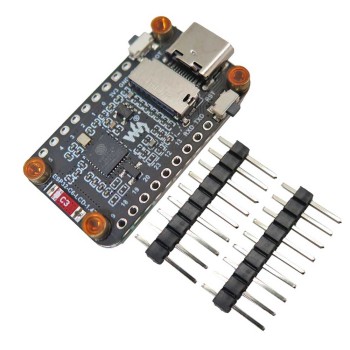

Items:

• 1× ESP32-C6 Development Board with 1.47-inch LCD display and RGB LED
• 2× Flat Header Pins – un-soldered, can be installed on the board

Documents:

Learn How to Set Up and Download Tools & Software Waveshare ESP32-C6
