ESPC6 32E N4 Module

The ESPC6 32E N4 module is one of the newest products from DOIT, designed based on the powerful ESP32-C6 chip from Espressif Systems. This module simultaneously supports four advanced communication technologies—Wi-Fi 6 (802.11ax), Bluetooth 5.0 LE, Zigbee 3.0, and Thread—providing a comprehensive wireless solution for developers of smart systems and the Internet of Things (IoT).

The ESPC6-32E-N4 module utilizes the ESP32-C6 chip, which benefits from a modern 32-bit RISC-V architecture. With an operating frequency of up to 160 MHz, it delivers fast, stable, and low-power performance. The N4 model is equipped with 4 MB of internal flash memory, which is entirely sufficient for most control, monitoring, and wireless communication projects. DOIT has optimized signal paths, antenna quality, and power supply stability in the design of this module version, reducing noise levels and increasing network stability.

Support for the Wi-Fi 6 standard enables increased data transfer speeds, reduced latency, and improved performance in crowded environments, while Zigbee 3.0 and Thread allow for the creation of stable mesh networks for smart home and industrial systems. Additionally, the Target Wake Time (TWT) feature significantly reduces energy consumption, and WPA3 encryption ensures communication security.

With support for both an internal PCB antenna and an external (U.FL) antenna, this module is an ideal choice for diverse designs. From Smart Home projects and intelligent control systems to industrial automation and wireless sensors, the DOIT ESPC6-32E-N4 fulfills all your needs in a compact and powerful package.

ESPC6 32E N4 module Application:

1. Smart Home
2. Mesh Networks
3. Gateway/Hub Modules
4. Smart Agriculture Systems
5. Educational and Research Projects
6. Communication Module in Wearable Devices
7. Industrial IoT Systems

ESPC6 Specification:

1. Main Chipset:ESP32-C6 with 32-bit RISC-V architecture
2. Frequency: 160 MHz
3. Flash Memory: 4MB (N4)
4. Supported Wireless Protocols:
5. Wi-Fi 6 (802.11 b/g/n/ax)
6. Bluetooth 5.0 LE
7. Zigbee 3.0
8. Thread
9. Internal PCB antenna
10. Male U.FL socket for external antenna
11. GPIO: Up to 23 configurable input/output pins
12.  SPI, I2C, I2S, UART, ADC, PWM, RMT, SDIO 2.0, USB, MCPWM, GDMA, Twai® (CAN Bus), JTAG
13. Operating Voltage (VDD): 3.0V to 3.6V (typical 3.3V)
14. Operating Temperature: -40°C to +105°C
15. Soldering Temperature: 260°C according to IPC/JEDEC J-STD-020 standard
16. Power Consumption in Modem-Sleep Mode: Approximately 38 mA (CPU active at 160 MHz)
17. Power Consumption in Light-Sleep Mode: Approximately 180 µA
18. Power Consumption in Deep-Sleep Mode: Approximately 7 µA (with RTC active)
19. Power Consumption in Power-Off Mode: Approximately 0–1 µA
20. I/O Logic Voltage Levels (VIH / VIL / VOH / VOL):
21. High-Level Input (VIH): 0.75 × VDD to VDD + 0.3V
22. Low-Level Input (VIL): -0.3V to 0.25 × VDD
23. High-Level Output (VOH): ≥ 0.8 × VDD
24. Low-Level Output (VOL): ≤ 0.1 × VDD
25. Software Support: ESP-IDF, Arduino IDE, MicroPython

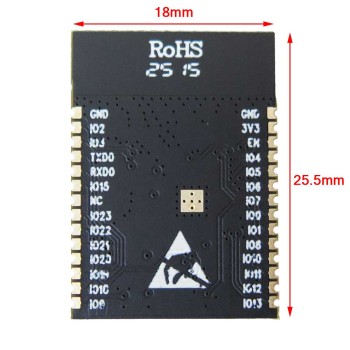

26. Dimensions: 18 x 25.5 mm

Documents:

ESPC6 Datasheet
