EG8010B Inverter Module

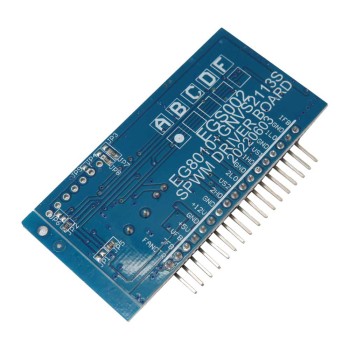

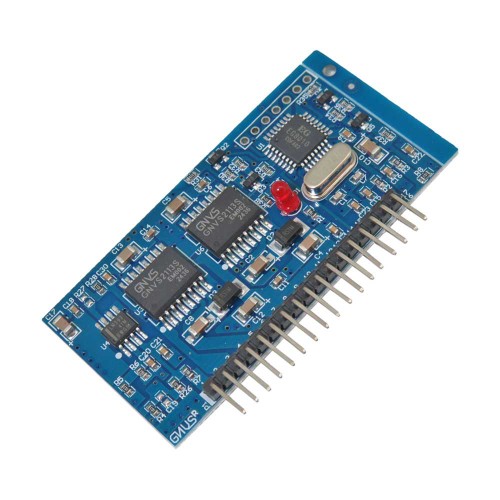

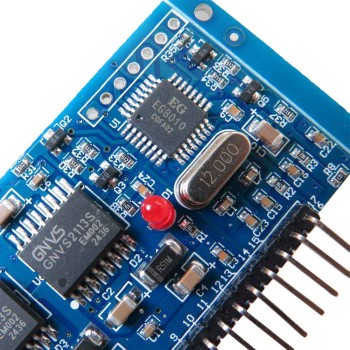

the egs002 sine wave inverter module is a non-programmable inverter that allows for a pure sine wave inverter without the need for programming. the eg8010b ic is used as the control chip and the ir2110s is used as the driver.
the eg8010b inverter module is capable of providing voltage, current, temperature protection, fan control, and an led display, and by connecting to an lcd, the voltage, current, temperature, and output frequency can be monitored, and using jumpers, we can limit or expand the board's functions.

application of Sine wave inverter module EGS002:

1. photovoltaic system inverter
2. wind wave inverter
3. single-phase speed controller
4. ups system
5. sine wave dimmer

specifications of the eg8010-egs002 module:

1. supply voltage: 5 volts
2. driver: ir21102
3. processor: eg8010b
4. output wave frequency: 50 hz
5. fixed output frequency: 60 hz
6. adjustable frequency: 0 to 400 hz
7. unipolar and bipolar modulation
8. pwm carrier frequency: 23.4 khz
9. 4 time zones: 300 ns, 500 ns, 1 us, 1.5 us
10. external crystal oscillator: 12 mhz
11. high voltage protection, high current protection, high temperature protection
12. serial communication
