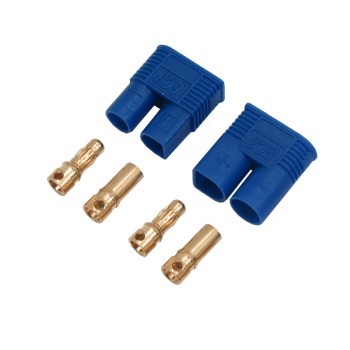

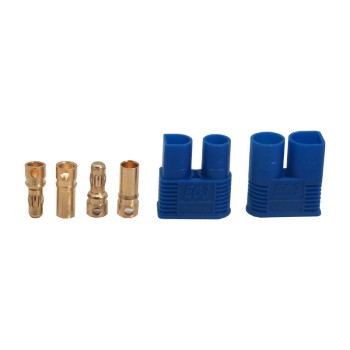

EC3 Male Female 3.5mm Banana Plug Set

The male and female banana connector EC3 is a type of electrical connector designed for linking power systems such as speed controllers, motors, and batteries in certain radio-controlled model brands. This EC3 banana connector features three pins, used for connecting the negative (common) wire, the positive wire, and the power supply wire.

Recognized as an industry standard in RC modeling, the EC3 banana connector is widely used for high-current power connections. Its durable and reliable design ensures efficient power transfer between components such as the battery connector, motor, and controller without energy loss.

• Key advantages of the EC3 banana connector include:
• Quick and easy connection and disconnection, making maintenance and modifications simpler.
• High performance with the ability to handle high current and power efficiently.
• Heat resistance, ensuring reliability under high current and heavy usage.
• Strong mechanical durability, providing a secure fit and resistance to vibration and impact.



In summary, the EC3 banana connector is a trusted standard for high-current power systems in RC models. Its rugged design guarantees efficient energy transfer between components, whether used as a banana socket, battery connector, or in other critical connections.

Applications of the EC3 socket

1. Power system connection
2. Speed controller integration
3. Motor interface
4. Battery connector usage

Specifications of the Male female banana connector

1. Name: Amass EC3 Plug Connector with 3.5mm Banana Plug
2. Brand: Amass
3. Model: EC3
4. Molded Materials: Nylon
5. Metal Material: Copper
6. Surface Treatment: Gold-plated copper
7. Internal Resistance: 0.45 mΩ
8. Temperature Resistance: -20 ℃ to 120 ℃
9. Recommended Cable: 14 AWG
10. Weight: 4.4 g
11. Maximum RC/MC Current: 30 A / 50 A
12. Pulling Force / 500: 35 N
13. Soldering Specification: 480 ℃ / 4 s
14. Recommended Usage: Up to 1000 cycles
