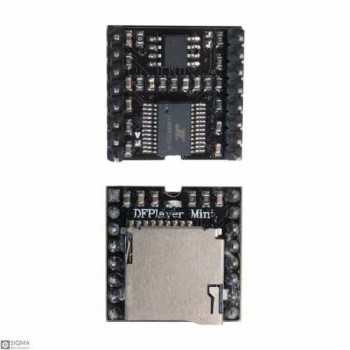

10 PCS DFPlayer Mini MP3 Player Module

10 PCS DFPlayer Mini MP3 Player Module
  • Product Code:SQ1709
  • Availability: In Stock
  • $8.70
  • Ex Tax:$8.70

Tags: DFPlayer Mini, TF Card Player, MP3 plauer Module

The DFPlayer Mini MP3 Player is a small and low-cost MP3 module with a simplified output directly to the speaker. The module can be used as a stand-alone module with the attached battery, speaker and push buttons. It also can be used in combination with an Arduino UNO or any other device with RX/TX capabilities. The DFPlayer perfectly integrates hard decoding module, which supports common audio formats such as MP3, WAV, WMA and FAT16 and FAT32 file system. This module includes a simple serial port for plug and play.

DFPlayer mini module Application:

  1. Electricity, communications, financial business hall voice prompts
  2. Multi-channel voice alarm
  3.  equipment operating guide voice
  4. Electromechanical equipment failure alarm

DFPlayer mini Features:

  1. Supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
  2. 24 -bit DAC output, support for dynamic range 90dB, SNR support 85dB
  3. Maximum support 32G of the TF card, 32G of U disk, 64M bytes NOR-FLASH
  4. A variety of control modes, I/O control mode, serial mode, AD button control mode
  5. Notification sound waiting for function, the music can be suspended. when the notification sound is over, the music continues to play.
  6. Audio data sorted by folder supports up to 100 folders, every folder can hold up to 255 songs
  7. It includes 30 levels adjustable volume and supports 6 -level adjustable EQ.


  1. DFPlayer mini mp3 pdf Link
  2. DFPlayer Arduino Link

Package Include:
10 x DFPlayer Mini MP3 Player Module

Electrical Parameters
Voltage DC 5V
Physical Parameters
Weight 4g
