10 PCS DC-DC 12V Output Converter Module [Pos and Neg]

10 PCS DC-DC 12V Output Converter Module [Pos and Neg]
Click image for Gallery
  • Product Code:SQ3640
  • Availability: 1000
  • $5.35
  •
  • Ex Tax:$5.35
+
-


Tags: Power Converter Module, Boost mocule, 12V DC-DC converter module

Description:

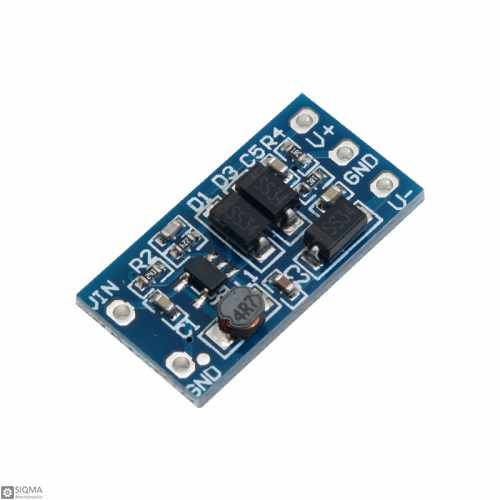

DC-DC positive and negative 12V output voltage converter module has good performance for converting input voltages from 2.8V to 12V DC. You can use 3V~5.5V batteries (lithium batteries, nickel hydrogen batteries and 18650 battery series) with this module to obtain the +/- 12V output voltage. This moduel is very small sized and easy to install.

DC-DC BOOST Converter Application:

  1. ADC
  2. DAC
  3. amplifier applications

12V BOOST module Features:

  1. Input voltage range: 2.8V ~ 5.5V
  2. Output voltage: ± 12V (V +  is + 12V, V-  is -12V)
  3. Output Current: + 12V stable output 50ma current capability, -12V Stable output 30ma current capability
  4. Size: 24mm × 12mm

Document:

 12v BOOST converter review Link

Package Include:
10 x Voltage Converter Board

NOTE:
The -12V supply is lower 0.4-0.6V than the + 12V supply because of the partial voltage of the diode.
Please do not connect high-power loads to this module because of the small output current.

Electrical Parameters
Input Voltage 2.8V - 5.5V
Output Current 50mA (+12V ) 30mA (-12V)
Output Voltage +/-12V
Physical Parameters
Size 24mm x 12mm
Weight 2g
