10 PCS RS232 Serial DB9 Connector [Female, Male]

10 PCS RS232 Serial DB9 Connector [Female, Male]
  • Product Code:SQ3634
  • Availability: In Stock
  • $0.80
  • Ex Tax:$0.80

Available Options

This product has a minimum quantity of 9

Tags: Male Socket, Female Socket, DB9, DB9 Connector, DSUB9, RS232 Connector

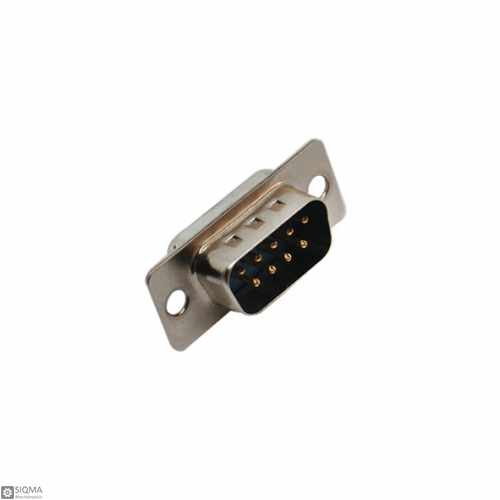

10 PCS RS232 Serial DB9 Connector package includes 10 pieces of high-quality D-SUB 9PIN (male) and D-SUB 9HOLE (female) pair connector which is widely used for serial communication RS232, RS485, and RS422 interface. Therefore D-SUB connector is known as RS232 connector, too. The shape of this connector's housing is similar to the D character of English letter and the term "DB" is an abbreviation of the D-Subminiature or D-Sub, so DB9 is a type of the D-Subminiature connector with the smallest footprint size, which encircles 9 pins (for the male connector) or 9 holes (for the female connector). DB9 connectors are used as a serial port for serial interfaces, which is a most useful of the external interface of PCs and notebooks, appearing in some computer accessory such as a serial mouse, modem, tablets, etc.
Nine serial pins or holes of DB9 connector is defined as follows:
1 DCD Data Carrier Detect
2 RD Receive Data (RDX)
3 TD Transmit Data (TDX)
4 DTR Data Terminal Ready
5 SG Signal Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 RI Ringing Indicator

Type: DB9 holes Female/ pins Male
Material: Metal (housing and pins/holes), Plastic (housing filler)

Package Include:
10 x DB9 Male Connector

Connector Features
Model Female , Male
Pin Number 9 Pins/Holes
Physical Parameters
Material Metal (housing and pins/holes), Plastic (housing filler)
