10 PCS DB9 Connector with Shell [Female , Male]

10 PCS DB9 Connector with Shell [Female , Male]
  • Product Code:SQ3649
  • Availability: In Stock
  • $1.20
  •
  • Ex Tax:$1.20

Available Options

This product has a minimum quantity of 6
+
-


Tags: Solder Plug, Male Socket, Female Socket

Description:

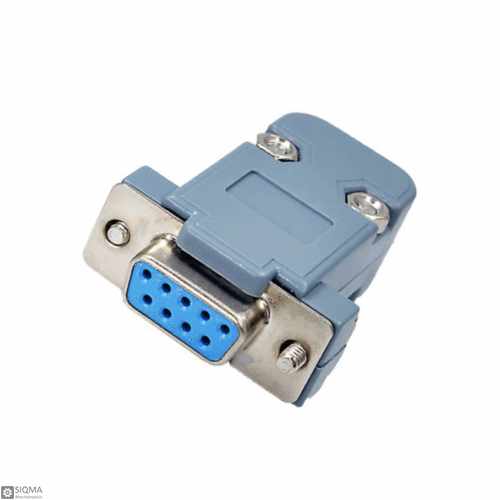

10 PCS RS232 Serial DB9 Connector with Shell [Female, Male] package includes 5 set of disassembled D-sub 9 pair (5 male and 5 female) connectors, which each male or female connector set consist of one DB9 upper and lower case, one housing with 9 pins, 4 screws and 2 metal fixer for fixing two cases together, and 2 screws and 2 nut and 2 its metal spacer. This DB9 set consists a high-quality D-SUB 9PIN (male) and D-SUB 9HOLE (female) pair connector with upper and lower case (shell)  which is widely used for serial communication RS232, RS485, and RS422 interface. The D-SUB connector is known as RS232 connector, too. The shape of this connector's housing is similar to the D character of English letter and the term "DB" is an abbreviation of the D-Subminiature or D-Sub, so DB9 is a type of the D-Subminiature connector with the smallest footprint size, which encircles 9 pins (for the male connector) or 9 holes (for the female connector). DB9 connectors are used as a serial port for nine pinout serial interfaces, which is a most useful of the external interface of PCs and notebooks, appearing in some computer accessory such as a serial mouse, modem, tablets, etc.

DB9 Connector Pinout:
1 DCD Data Carrier Detect
2 RD Receive Data (RDX)
3 TD Transmit Data (TDX)
4 DTR Data Terminal Ready
5 SG Signal Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 RI Ringing Indicator

DB9 Connector Specifications:
Type: DB9 Pin Female/Male Plug
Material: Plastic, Metal
Size: 40.25mm x 31mm x 15.8mm

Package Include:
5 x DB9 female Connector with Shell
5 x DB9 male Connector with Shell

Connector Features
Type Female , Male
Pin Number 9 Pin
Physical Parameters
Size 40.25mm x 31mm x 15.8mm
Material Plastic, Metal
