CSN-A1K 58mm Embedded Thermal Panel Printer with RS232/TTL/USB Interface

CSN-A1K 58mm Embedded Thermal Panel Printer with RS232/TTL/USB Interface
Click image for Gallery
  • Product Code:SQ6756
  • Availability: 1000
  • $16.55
  •
  • Ex Tax:$16.55
+
-

0 reviews / Write a review

Tags: Thermal Panel Printer, panel printer, embedded printer, RS232 TTL printer, USB thermal printer, ESC/POS printer, thermal printer, kiosk printer, panel mount printer

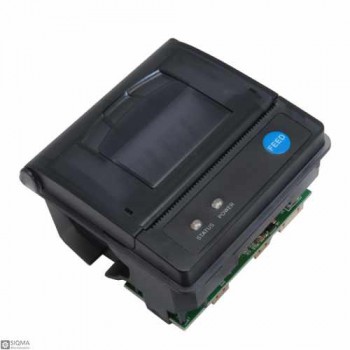

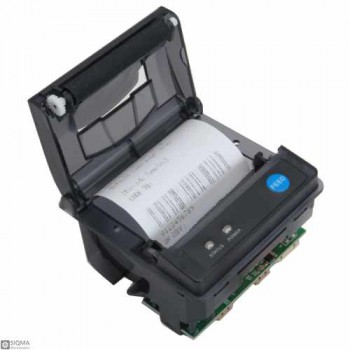

The CSN-A1K is a compact 58mm embedded thermal panel printer module designed for integration into equipment where space is limited. Utilizing direct thermal line printing technology, this CSN-A1K printer requires no ink or ribbon, producing clear receipt images by heating specially coated thermal paper as it passes over the print head. This makes it an efficient and low-maintenance solution for applications such as POS systems, medical devices, measuring instruments, security equipment, and self-service kiosks.

The printer supports multiple interface options including RS232, TTL serial, and USB, with a default baud rate of 19200bps. It is fully compatible with the ESC/POS command set, ensuring broad compatibility with existing software systems. The print head delivers a resolution of 203dpi (8 dots/mm) across a 48mm effective print width, with a maximum print speed of 90mm/s. The CSN-A1K supports character sets including ASCII, GB2312-80 (Chinese), and GBK, with multiple font sizes for both ANK and Chinese characters.

With compact dimensions of 76.8mm × 77.4mm × 47.7mm and an embedding depth of just 34.65mm, this panel printer is designed for seamless front-panel installation. The printer operates on a DC power supply of 5V to 9V and includes photoelectric paper-end detection and thermistor-based print head temperature monitoring. The mechanism is rated for a print head life of 50km and a mean cycle between failures (MCBF) of 5 million lines, ensuring reliable long-term operation.

CSN-A1K thermal printer module Application

  1. Point of Sale (POS) and retail receipt printing
  2. Medical and healthcare equipment
  3. Measuring and analytical instruments
  4. Security and access control systems
  5. Self-service kiosks and ticketing machines
  6. Gas stations and fuel dispensers
  7. Automotive ID and registration terminals
  8. Hospitality and fiscal printers

CSN-A1K thermal printer module Specifications

  1. Product Model: CSN-A1K
  2. Product Type: 58mm embedded thermal panel printer
  3. Print Method: Direct thermal line printing
  4. Resolution: 203 dpi (8 dots/mm, 384 dots/line)
  5. Print Speed: 50-80 mm/s (up to 90 mm/s at higher voltage)
  6. Effective Print Width: 48 mm
  7. Paper Width: 57.5 ± 0.5 mm
  8. Paper Roll Diameter: Max 40 mm
  9. Paper Thickness: 60-85 μm
  10. Interface: RS232, TTL serial, USB
  11. Default Baud Rate: 19200 bps
  12. Baud Rate Range: 9600 bps to 115200 bps
  13. Command Set: ESC/POS compatible
  14. Character Set: ASCII, GB2312-80 (Chinese), GBK, BIG5
  15. Print Font (ANK): 8×16, 9×17, 9×24, 12×24
  16. Print Font (GBK): 16×16, 24×24
  17. Print Head Life: 50 km
  18. MCBF: 5 million lines
  19. Paper End Detection: Photoelectric detection
  20. Print Head Temperature Detection: Via thermistor
  21. Operating Voltage: DC 5V to 9V (up to 12V optional)
  22. Operating Current: ≥2A
  23. Dimensions (W×D×H): 76.8 × 77.4 × 47.7 mm
  24. Embedding Depth: 34.65 mm
  25. Mounting Port Size: 73.1 × 73.55 mm
  26. Operating Temperature: 0°C to +50°C
  27. Operating Humidity: 10% to 80% RH
  28. Storage Temperature: -20°C to +60°C
  29. Storage Humidity: 10% to 90% RH

Features

  1. Compact 58mm embedded thermal panel printer module
  2. Direct thermal line printing requires no ink or ribbon
  3. Multiple interface options: RS232, TTL serial, and USB
  4. ESC/POS command set compatible for broad software support
  5. 203 dpi resolution with 48mm effective print width
  6. Print speed of 50-80 mm/s (up to 90 mm/s)
  7. Supports ASCII, GB2312-80 (Chinese), GBK, and BIG5 character sets
  8. Multiple font sizes for ANK and Chinese characters
  9. Photoelectric paper-end detection for reliable operation
  10. Thermistor-based print head temperature monitoring
  11. Low embedding depth of 34.65mm for space-constrained installations
  12. Long print head life of 50km and MCBF of 5 million lines
Interfaces
Interface Type Serial(RS232,TTL), USB
Electrical Parameters
Input Voltage 5V ~ 9V, 12V
Thermal Printer Properties
Character ASCII,GB2312-80(Chinese)
Font ANK(8x16,9x17,9x24,12x24), GBK (16x16,24x24)
Paper Width 57.5+- 0.5mm
Printing Method Thermal Line
Printing Speed 50mm/s ~ 80mm/s
Resolution 8 dots/mm, 384 dots/line
Physical Parameters
Size 76.8mm x 77.4mm x 47.7mm
Color Black
Environmental Conditions and Safety
Operating Temprature 5℃  ~ 50℃
Storage temprature -20℃  ~ 60℃
Operating humidity 10% ~ 80% RH
Storage Humidity 10% ~ 90% RH
