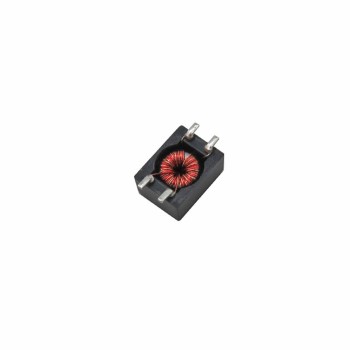

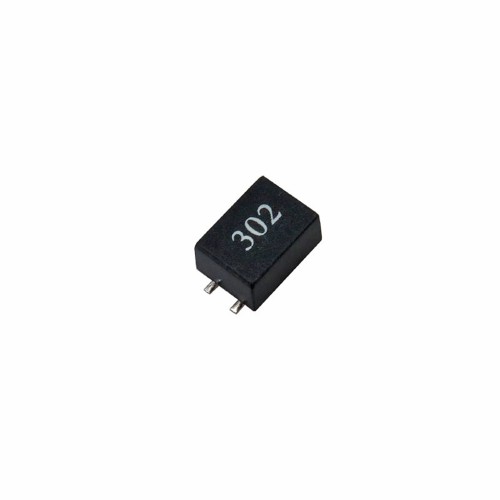

Common Mode SMD Inductor Choke 3mH 0.5A

Click image for Gallery

Product Code:SQ11127
Availability: 1000

$0.70
Ex Tax:$0.70

This product has a minimum quantity of 10

Qty +
-

0 reviews / Write a review

Tags: Common mode choke, CM choke, inductor

Description
Reviews (0)

Description:

A good method for removing common mode noise in power electronic circuits such as electric motor drives; Using a choke is a common mode. If it is determined by measurement that the common mode noise is stronger, a suitable option to eliminate it is to use a CM choke. When common mode noise comes, an inductor with high impedance and a capacitive path with low impedance to the ground are placed in its path, so it chooses the capacitive path and the noise is transferred to the ground, thus preventing its propagation to the rest. The circuit is taken.

This common mode choke is surface mounted or SMD with a size of 470 microhanries and a current of 0.5 amps, which is placed in the supply lines for the purpose of common mode noise.

Application:

Power Systems

Power Supply Filter Line

Features:

Termination type: SMD patch type

Inductor: 4.7 mH

Rated DC current: 0.5A

Operating temperature range: -40°C to +120°C

Inductance withstand voltage: 500 V rms

length: 7.50 mm

Width: 5.40 mm
