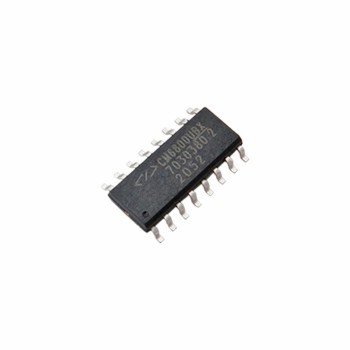

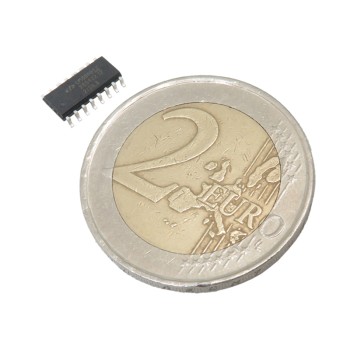

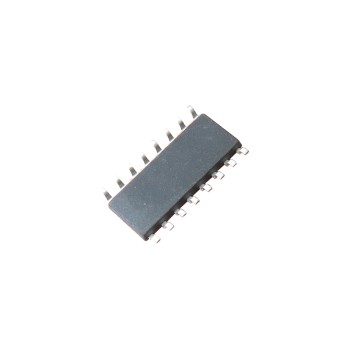

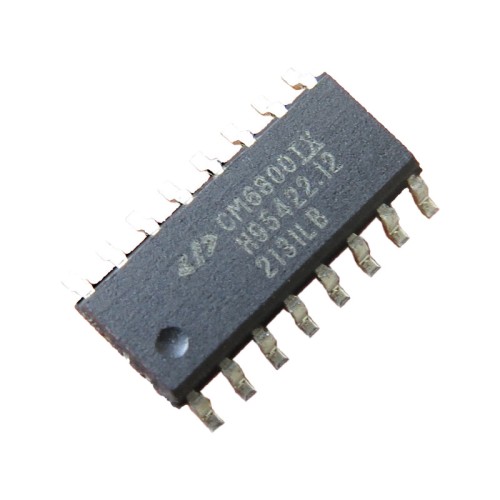

CM6800 IC has SOP-16 package

the cm6800 ic is a controller for power factor correction (pfc). power factor correction allows for the use of smaller and less expensive capacitors. the cm6800 includes overcurrent limiting for the pwm section to provide short-circuit protection and can protect the circuit against overvoltage. the cm6800 microcontroller package comes in an sop with 16 pins.

application of CM6800 IC has SOP-16 package:

1. desktop computer power supply
2. internet server power supply
3. ups units
4. battery chargers
5. dc motor power supply
6. power supply for telecommunications systems
7. power supplies for monitors
8. distribution systems

specifications of the CM6800 microcontroller:

1. supply voltage: 20 volts
2. current: 0 to 7.5 amperes
3. reference current: 10ma
4. starting current: 100 μ
5. operating current: 3.0ma
6. ripple voltage reduction
7. over voltage protection
8. soft start
