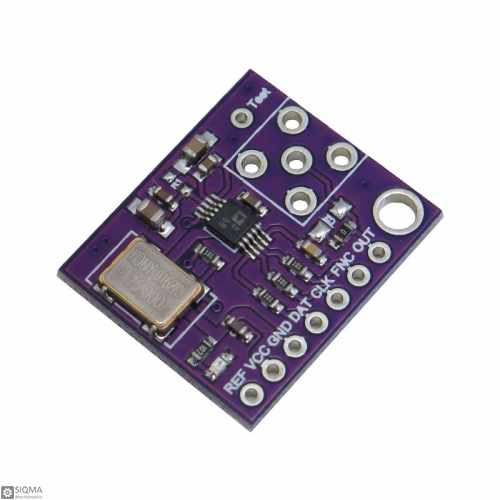

AD9833 Signal Generator Module [0Hz-12.5MHz]

AD9833 Signal Generator Module [0Hz-12.5MHz]
  • Brands CJMCU
  • Product Code:SQ3340
  • Availability: In Stock
  • $5.60
  •
  • Ex Tax:$5.60
This product has a minimum quantity of 3
+
-


Tags: AD9833 Signal Generator, Programmable Waveform Generator, Sine Wave Generator, Triangle Wave Generator, Square Wave Generator

Description:
A waveform generator or frequency stimulus is often required in various types of sensing, actuation, tuning and in time domain reflectometry applications.
The AD9833 uses a simple serial interface to generate sine, triangular and digital waveforms of the desired frequency. Because the frequency is software programmable, tuning to locate and compensate for temperature drifts in resonant frequencies is simple.
This is a low power programmable waveform generator capable of generating sinusoidal, triangular, and square wave outputs.

Features:
Chip: AD9833
Working voltage: 2.3V ~ 5.5V
Onboard 25MHZ (accuracy of 50ppm) active crystal, stepping accuracy 0.1HZ.
on-board high-speed amplifiers 300M and also has low-pass filtering.
Frequency: 0Hz ~ 12.5MHz
Interface: SPI
Working temperature range: -40°C ~ +105°C
Size: 32mm x 32mm

Package Include:
1 x AD9833 Wave Generator Module

Interfaces
Interface Type SPI
Electrical Parameters
Frequency 0Hz ~ 12.5MHz
Working Voltage 2.3V ~ 5.5V
Board Parameters
Main Chip AD9833
Physical Parameters
Operating Temperature -40°C ~ +105°C
Size 32mm x 32mm
