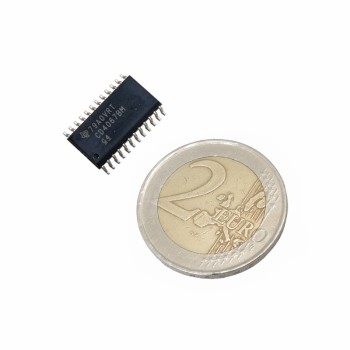

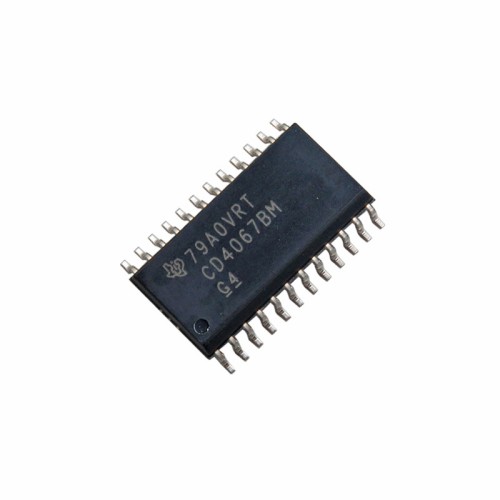

CD4067BM96 Multiplexer IC SOIC-24 Package

The CD4067BM96 SMD multiplexer chip is actually a 16-channel analog multiplexer and is known as the CD4067BM96 IC Multiplexer.

Analog multiplexers are often used when the number of analog inputs to the microcontroller is large an we want to do some of the processing with it.

The voltage range of this multiplexer is 3V to 18V.

The CD4067BM96 chip package is SMD SOIC-24, the PINOUT will be explained below:

1: COMMON I/O

2: I/O 7

3: I/O 6

4: I/O 5

5: I/O 4

6: I/O 3

7: I/O 2

8: I/O 1

9: I/O 0

10: A

11: B

12: VSS

13: D

14: C

15: INHIBIT

16: I/O 15

17: I/O 14

18: I/O 13

19: I/O 12

20: I/O 11

21: I/O 10

22: I/O 9

23: I/O 8

24: VDD
