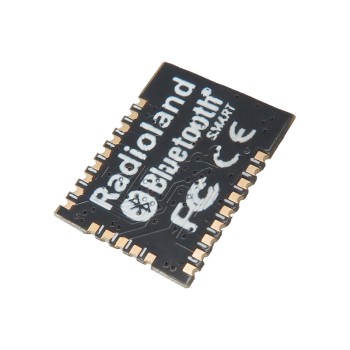

CCR2640R2F Bluetooth Module with IPEX Antenna Version 5

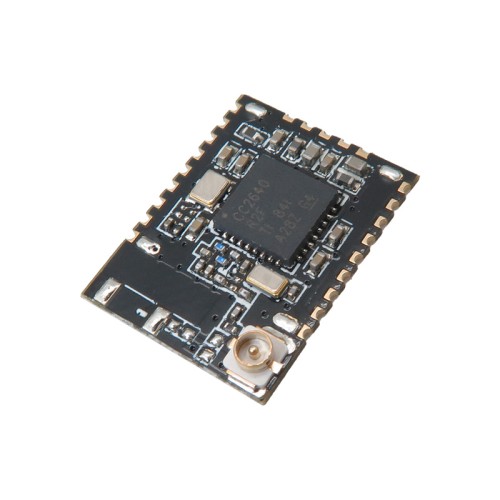

The CCR2640R2F Bluetooth Module with IPEX Antenna Version 5 is available for sale and is designed as a low-power Bluetooth Module Version 5 operating at a 2.4 GHz frequency. The module includes an antenna connector, making it simple to use—just connect the bundled antenna directly to the board.

At its core, this Bluetooth Module is powered by a Cortex-M3 processor running at 48 MHz, featuring 128 KB of flash memory and 20 KB of RAM. These specifications ensure stable and efficient wireless communication while maintaining low power consumption.

One of the most important features of the CC2640 Bluetooth Module (CC2640-BLE5) is its compact size, which allows it to be easily integrated into a wide range of portable devices and diverse applications. This small form factor makes it an excellent choice for modern IoT projects and battery-powered systems.

Applications of the CC2640 Bluetooth Module

1. Building and home automation
2. Medical and healthcare devices
3. Fitness and wellness equipment
4. Human Interface Devices (HID)
5. Industrial systems
6. Remote controls
7. Smart toys
8. Smart home solutions

Specifications of the CC2640 Bluetooth Module

1. Chipset: CCR2640R2F
2. Supply Voltage: 1.8 V ~ 3.8 V (Recommended: 3.3 V)
3. Frequency Range: 2402 MHz ~ 2480 MHz
4. Transmit Power: -21.0 dBm ~ +2.0 dBm (Typical: 0 dBm)
5. Receiving Sensitivity: -97 dBm
6. GPIO Pins: 10
7. Crystal Oscillator: 24 MHz, 32.768 kHz
8. RAM: 20 KB
9. Flash Memory: 128 KB
10. Frequency Error: ±20 kHz
11. Dimensions: 8.0 mm × 8.0 mm × (1.50 ± 0.1) mm
12. Antenna Type: IPEX Interface
13. Operating Temperature: -40 ℃ ~ +85 ℃
14. Storage Temperature: -40 ℃ ~ +125 ℃

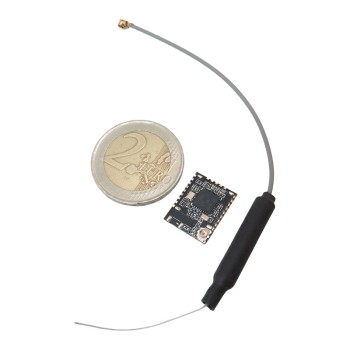

Contents of the CC2640 Bluetooth Module

1. Bluetooth module with on-board antenna connector
2. IPEX antenna

Documents:

CC2640 Chip Datasheet
