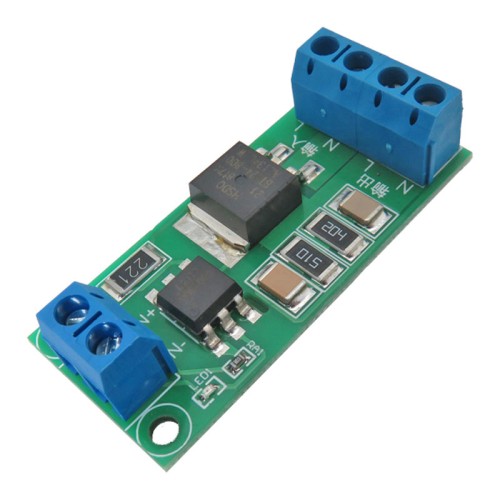

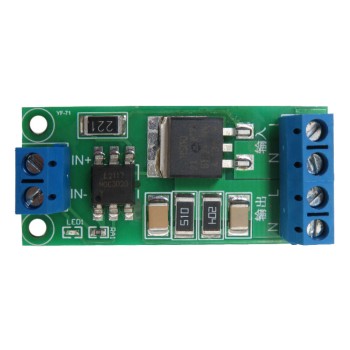

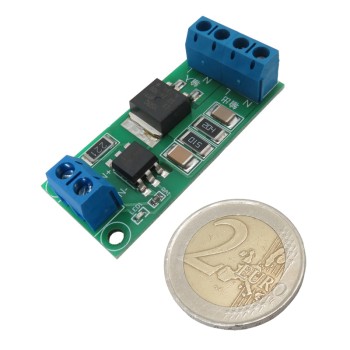

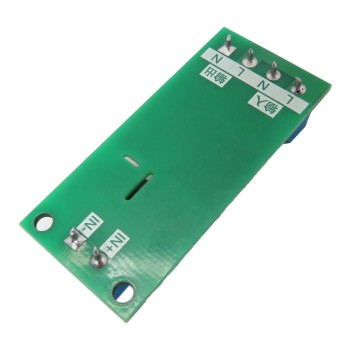

BTB16-800 Triac Module for Making AC Switch

btb16-800 is an industrial electronic component that can withstand voltages up to 800 volts and currents of 16 amps, and it functions effectively for alternating signal applications. the structure of the triac allows current to pass in both directions and operates similarly to a transistor; however, the maximum gate current of this component is up to 4 amps, making it suitable for controlling lighting and managing ac equipment with high noise levels and current variations over time.

application of the BTB16-800 Switch Module:

1. fan speed control
2. modulation control
3. lighting control
4. static switching relay

specifications of the BTB16-800 Triac Module for Making AC Switch:

1. voltage tolerance up to 800 volts
2. current: 16 amperes
3. maximum gate current: 4 amperes
4. maximum gate power: 20 watts
5. connection point temperature range: -40 to +125 c
6. high safety against voltage changes over time. 1000 volts in microseconds
