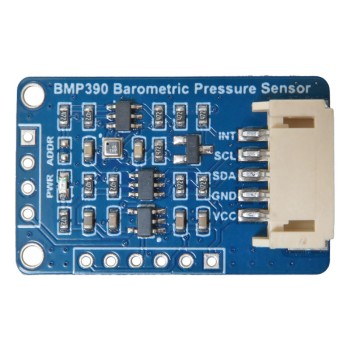

BMP390 Barometric Sensor Module

the bmp390 sensor module is a 24-bit barometric sensor that, despite its small size, has low power consumption and low noise. this digital module performs well and is suitable for distance tracking applications, and it is compatible with microcontrollers through i2c and spi interfaces, supporting voltage levels of 5 and 3.3 volts. this bmp390 temperature and pressure sensor module easily finds applications in projects such as gps modules, wearable devices, audio systems, drones, and internet of things projects.

application of the BMP390 Barometric Sensor Module:

1. gps module
2. wearable devices
3. drones
4. environmental monitoring
5. internet of things projects

1. detection of air pressure, temperature, and altitude
2. communication interface: i2c and spi
3. air sensor:
4. measurement range: 300~1250hpa
5. measurement accuracy: ±0.50 hpa
6. relative accuracy: ±0.03 hpa
7. offset coefficient: ±0.6pa/k
8. absolute measurement accuracy: ±0.5
9. sampling rate: 200hz
10. operating temperature range: -40~85 degrees celsius
11. dimensions: 32 by 20 millimeters
