Black UV Light Curing Protective Coating for PCB

Solder Mask for Printed Circuit Board (PCB) is used to create a protective layer on the board. However, care must be taken not to apply it on connection paths or soldering points.

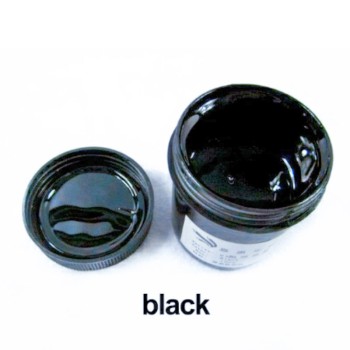

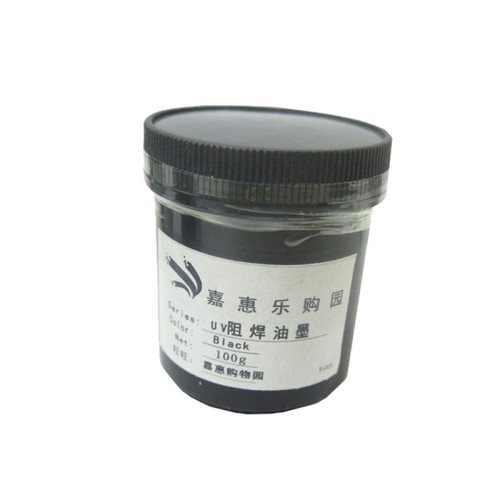

This Black UV Protective Coating for PCB, 100g, darkens the board when exposed to UV light by coating the PCB surface.

Using the solder mask protects the PCB from factors like oxidation and improves the board’s appearance.

Shake the solder mask well before use, and keep in mind that the UV Protective Coating for PCB is not dilutable.

Application of the Solder Mask for Printed Circuit Board (PCB)

1. PCB manufacturing
2. PCB design

Specifications of Solder Mask for Printed Circuit Board (PCB)

1. Color: Black
2. Weight: 100g
3. Hardness: 5H
4. Viscosity: 200 ± 50 PS at 25°C with good thixotropy
5. Particle Size: <15 nm
6. Welding Heat Resistance: 260°C ± 5°C for 10 seconds, repeated 3 times
7. Curing Conditions: 80 W/cm² high-pressure mercury lamp, 10 cm irradiation distance, 4-6 m/min speed
8. Adhesion: 100/100
9. Solvent Resistance: Resistant to boiling trichloroethane for 2 minutes
10. Insulation Resistance: Over 1 × 10¹³ Ω at 40°C, 95% RH for 72 hours (after initial 1 × 10¹² Ω)
11. Dielectric Strength: >500 V/mil
12. Storage Conditions: Temperature 22 ± 2°C, humidity 55 ± 5% RH

Note: Shake well before use.

Special Note: This UV Protective Coating for PCB cannot be diluted.
