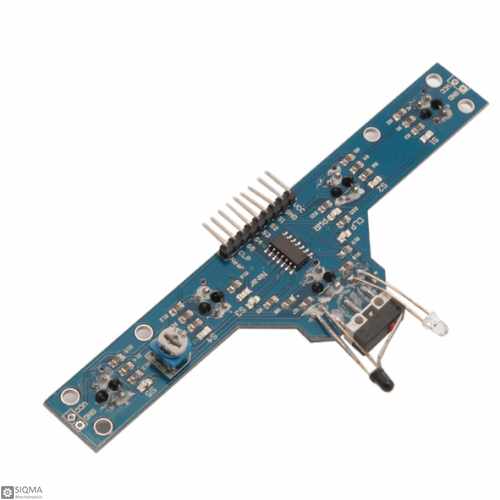

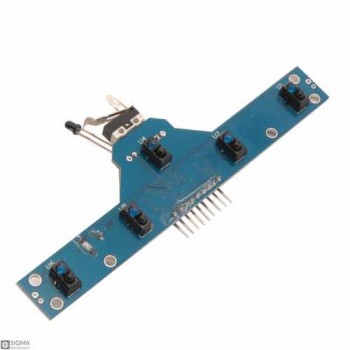

BFD-1000 5-Way IR Tracking Sensor Module [3V-5.5V]

BFD-1000 5-Way IR Tracking Sensor Module [3V-5.5V]
  • Product Code:SQ6852
  • Availability: In Stock
  • $1.40
  • Ex Tax:$1.40
This product has a minimum quantity of 6

Tags: Tracking Sensor, IR Photoelectric, Infrared Sensor, IR Tracking sensor, Line Tracking Sensor, Distance Detection

The Line Tracking Sensor is a type of infrared reflectance sensor that is commonly used in line following robots. This sensor mounts at the robot chassis.
The line tracking sensor works by detecting reflected light coming from its own infrared LED and by measuring the amount of reflected infrared light, it can detect transitions from light to dark (lines) or even objects directly in front of it.
BFD-1000 is specially designed for black (white) line hunting.
This module has sensors that are mounted on board to use with line follower robots. It has been sufficient to meet the day-to-day task of tracking by infrared distance and touch detection sensor. This board makes your robot to adapt to the area effortlessly.

Model: BFD-1000
Detection Distance:  0 ~ 4cm (black and white line sensors),
                                 0 ~ 5cm (adjustable distance detection)
Input Voltage: 3.0V ~ 5.5V
Output Type: Digital
Output high black line
Output low white line
Distance sensor at the front, distance can be adjusted
Special touch sensor design, making the robot design simple
Indicator LEDs

Package Included:
 1× 5 Channel Line Tracking Sensor

Sensor Parameters
Output Type Digital
Detection Distance 0 ~ 4cm (black and white line sensors) , 0 ~ 5cm (adjustable distance detection)
Electrical Parameters
Input Voltage 3.0V ~ 5.5V
