CA-4029 Monitor Double Transformers Inverter
Click image for Gallery
- Product Code:SQ11411
- Availability: 1000
- $2.10
- Ex Tax:$2.10
Tags: LCD, inverter monitor AVT4028, backlight, inverter monitor CA-4029
Description:
The inverter board supplies power to the monitor's backlight, and if the inverter module is damaged, the screen will stop working. The basis and purpose of using inverter modules is due to the low voltage of the monitor boards, that the low voltage level is insufficient to operate the display screens with backlight.

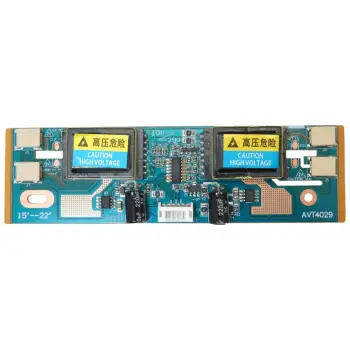

The AVT4029 inverter backlight module is a module with an input voltage level of 10 to 30 volts, suitable for 15 to 22-inch screens, and a transformer is placed on each side of it, and in fact, the CA-4029 module is a backlight inverter with 2 transformers and 4 outputs. There is backlight control on both sides of the screen.
Application:
LCD Monitor
Features:
Color: blue
Material: plastic + metal
Model Number: AVT4029
Inverter: PC LCD monitor inverter
Type: DC/DC Converters
Size: 135*40mm
Weight: 50g
Supported: 15-22 inch
Vin:10V-30V
Pinout:
1. Power supply - + 10-30 Volt
2. Power supply - + 10-30 Volt
3. ON / OFF - turning on the inverter Off 0 - 1.4 volts, 1.5-5 volts included.
4. ADJ - brightness control (more voltage - darker)
5. Ground
6. Ground
Output:
BHS560 (5.6 mm) - 4 pcs (voltage - 800-1500 V)
