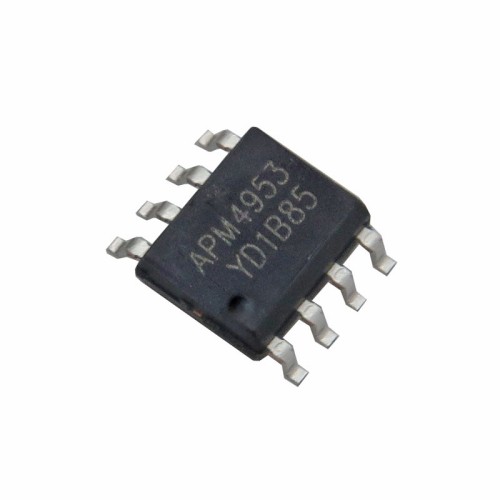

APM4953 MOSFET IC

APM4953 MOSFET IC
Click image for Gallery
  • Product Code:SQ11623
  • Availability: 1000
  • $0.20
  •
  • Ex Tax:$0.20
This product has a minimum quantity of 25
+
-


Tags: MOSFET, P-Channel MOSFET, APM4953

The APM4953 MOSFET IC integrates two P-channel MOSFETs in a single chip, offering a drain-source voltage rating of 30V and a maximum drain current of 4.9A.

This APM4953 P-Channel MOSFET IC is designed using advanced technology to achieve minimal drain-source resistance and a low gate voltage threshold, enhancing efficiency and reducing power loss.

Known as the APM4953 Dual MOSFET, it is widely used in PWM control circuits and various switching applications, providing reliable performance in power management and electronic switching devices.

Applications of the APM4953 Dual MOSFET

  1. PWM signal control
  2. Load switching
  3. Power management in laptops and motor control systems

Specifications of the APM4953 P-Channel MOSFET IC

  1. Drain-source resistance: less than 105mΩ at VGS = -4.5V
  2. Drain-source resistance: less than 55mΩ at VGS = -10V
  3. Drain-source voltage rating: 30V
  4. Gate-source voltage: ±20V
  5. Continuous drain current: 4.9A
  6. Maximum power dissipation: 2W
  7. Operating and storage temperature range: -55°C to 150°C
  8. Designed for high power and current handling
  9. Lead-free, environmentally friendly product
  10. Comes in a surface mount package

Documents:

APM4953 MOSFET IC Datasheet
