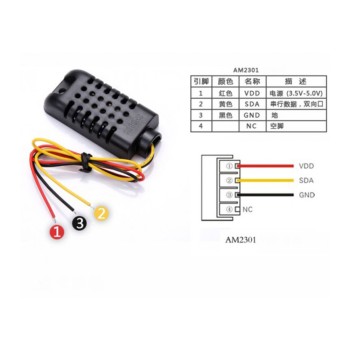

AM2301 Temperature And Humidity Sensor Module

AM2103 Capacitive Digital Humidity And Temperature Sensor is a new high precision single bus temperature and humidity detector, which is based on AM2103 humidity capacitive digital temperature and humidity sensor chip. The AM2103 chip is a high quality, fast response, anti-interference, but a little expensive chip. This sensor is composed of a capacitive humid sensor to detect humidity in a wide range from zero up to 100% and a high precision temperature sensor in climate range from -40℃ up to +80℃, which is connected to a high-performance 8-bit microcontroller. The humid and temperature sensor is calibrated in the cleanroom (laboratory), then calculates calibration coefficients and stored in the microcontroller program, to call it while sensing and during signal processing.

This is ultra-low power consumption, small size, and full auto-calibration module which makes it very suitable for portable applications. It can transmit the data to long distances up to 20 meters, thus is suitable for the industrial control from far away process. It is easily and completely interchangeable, so repairing process is simple and easy. It supports standard digital single bus output with long period stability. This module can be used in test and measurement tools and devices, HVAC equipment, dehumidifier, inspection equipment, consumer goods, automatic control, data loggers, home appliances, humidity regulator, medical projects, weather stations, and other humidity measurement and control and so on.

Temperature And Humidity Sensor Application:

1. test and measurement tools
2. HVAC equipment
3. dehumidifier
4. inspection equipment
5. automatic control
6. home appliances
7. humidity regulator
8. medical projects
9. weather stations

Temperature And Humidity Sensor Specification:

1. Signal Output: Single-bus Digital Signal
2. Sensing Element: Capacitive Humidity
3. Scope of work: Humidity 0-100% RH; temperature -40 ~ 80 ℃
4. Humidity Accuracy: ± 2% RH;
5. Temperature Accuracy: ± 0.5 ℃
6. Resolution: Humidity 0.1% RH; Temperature 0.1 ℃
7. Repeatability: Humidity ± 0.5% RH; Temperature ± 0.2 ℃
8. Humidity Hysteresis: ± 0.3RH%
9. Long-term Stability: ± 0.5% RH / Year
10. Interchangeability: Fully interchangeable
11. Response time: 6S
12. Specifications: 14 * 18 * 5.5mm
