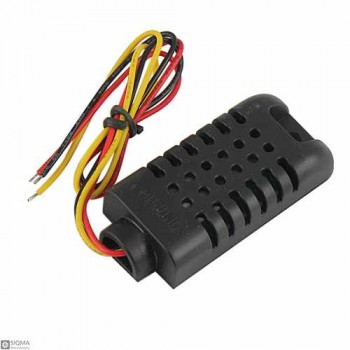

AM2301 Temperature And Humidity Sensor Module

AM2301 Temperature And Humidity Sensor Module
  • Product Code:SQ2811
  • Availability: In Stock
  • $2.36
  •
  • Ex Tax:$2.36
This product has a minimum quantity of 3
+
-


Tags: AM2301, Temperature Humidity, Temperature Sensor, Humidity Sensor

Description:
AM2103 Capacitive Digital Humidity And Temperature Sensor  is a new high precision single bus temperature and humidity detector, which is based on AM2103 humidity capacitive digital temperature and humidity sensor chip. The AM2103 chip is a high quality, fast response, anti-interference, but a little expensive chip. This sensor is composed of a capacitive humid sensor to detect humidity in a wide range from zero up to 100% and a high precision temperature sensor in climate range from -40℃ up to +80℃, which is connected to a high-performance 8-bit microcontroller. The humid and temperature sensor is calibrated in the clean room  (laboratory), then calculates calibration coefficients and stored in the microcontroller program, to call it while sensing and during signal processing.
This sensor module is ultra-low power consumption, small size, and full auto calibration, which make it very suitable for portable applications. It can transmit the data to long distances up to 20 meters, thus is suitable for the industrial control from far away process. It is easily and completely interchangeable, so repairing process is simple and easy. It supports standard digital single bus output with long period stability. This module can be used in test and measurement tools and devices, HVAC equipment, dehumidifier, inspection equipment, consumer goods, automatic control, data loggers, home appliances, humidity regulator, medical projects,   weather stations, and other humidity measurement and control and so on.

Features:
Model: AM2301
Input Voltage : 3.5V ~  5.5V
Measuring current : 1mA ~ 1.5mA
Humidity range : 0-100% RH
Temperature range: -40 ℃ ~ +80 ℃
Humidity accuracy : ± 2% RH
Temperature accuracy : ± 0.5 ℃
Wire length: 25cm
Size: 59mm x 27mm x 13mm

Package include:
1 x Humidity Sensor Module

Sensor Parameters
Accuracy ± 2% RH
Humidity Range 0-100% RH
Temperature Range -40℃ ~ 80℃
Electrical Parameters
Input Voltage 3.5V~ 5.5V
Working Current 1mA ~ 1.5mA
Board Parameters
Main Chip AM2301
Physical Parameters
Size 59mm x 27mm x 13mm
Weight 16g
