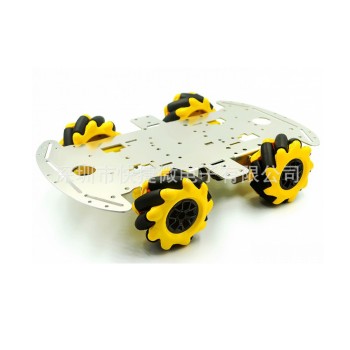

Aluminum Robot Chassis with Mecanum Wheels and Motor

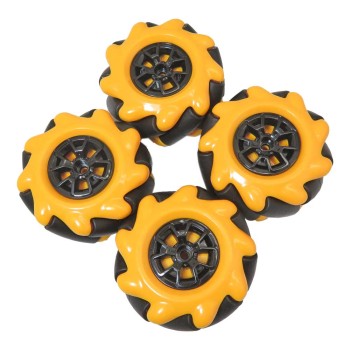

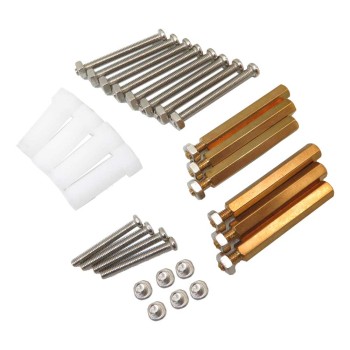

The 4 Mecanum Wheels Robot Chassis is made of aluminum alloy, offering a lightweight yet sturdy structure. It features four Mecanum wheels, four TT motors, an aluminum alloy base plate, four couplings, and matching screws and nuts, allowing omnidirectional movement in all directions—including left/right parallel, forward/backward, diagonal upper-left/right switches, and lower-left/right diagonal shifts. It can also move smoothly around corners and at 45-degree angles.

This Aluminum Robot Chassis with 4 Mecanum Wheels includes multiple mounting holes, making board assembly and installation easier. The Chassis is designed as a double-layer structure, suitable for building intelligent vehicles.

The Obstacle Detection Robot Chassis kit can be expanded with electronic systems such as Raspberry Pi or Arduino to enable functionalities like line tracking, obstacle avoidance, speed measurement, and wireless remote control.

Applications of the Obstacle Detection Robot Chassis

1. Robotics
2. Arduino projects
3. Smart car development

Specifications of the Obstacle Detection Robot Chassis

1. Body Material: Aluminum Alloy
2. Wheels: 4 Mecanum Wheels
3. Dimensions: 25.5 cm × 15 cm
4. Wheel Diameter: 60 mm
5. Weight: 472 g
