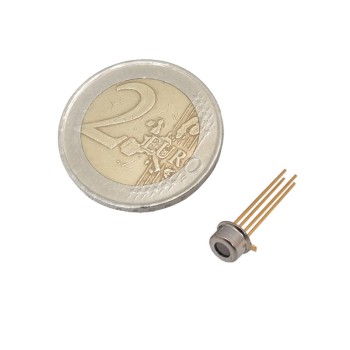

AGP2401 Non-Contact Temperature Sensor

The AGP2401 Thermopile is a non-contact temperature sensor that measures surface temperature by detecting infrared radiation emitted from objects. As the surface temperature increases, the infrared energy emitted also rises. The AGP2401 Temperature Sensor is a thermopile and belongs to the family of non-contact sensors, meaning it can measure physical objects from a distance, even several meters away.

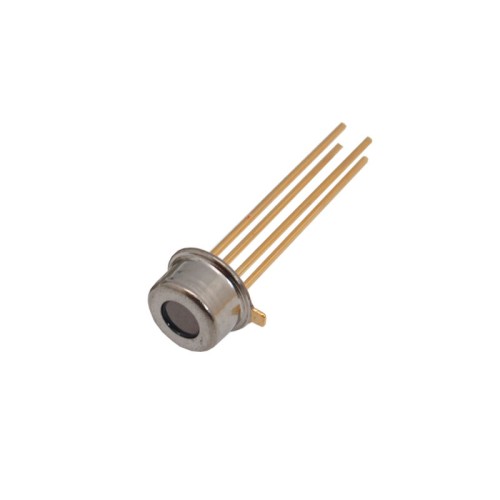

Like other thermopiles, the AGP2401 Thermopile Sensor is composed of multiple small thermocouples on a chip that absorb energy and generate an output signal. It is designed in a TO-46 package with dimensions of 1.1 x 1.1 mm and a sensitive area of 0.85 x 0.85 mm.

Thermopiles, including the AGP2401 Thermopile, are used in a wide range of applications, from industrial process monitoring to occupancy and motion detection, as well as medical temperature readings such as ear thermometers.

Applications of the AGP2401 Thermopile

1. Non-contact temperature measurement devices
2. Ear thermometers
3. Forehead thermometers
4. Continuous temperature monitoring in manufacturing
5. Consumer electronics
6. Temperature sensing in home appliances

Specifications of the AGP2401 Thermopile

1. MEMS thermopile element
2. TO-46 package
3. 5.5 μm long wave pass (LWP) filter
4. High sensitivity and accuracy
5. Operating temperature range: -30 to +100 °C
6. Storage temperature range: -40 to +125 °C
7. Chip dimensions: 1.1 x 1.1 mm
8. Sensitive area size: 0.85 x 0.85 mm
9. Field of view: 112°
10. Thermopile resistance: 350 ± 20% kΩ
11. Noise voltage: 60 ± 2 nV/√Hz at 25 °C
12. Temperature coefficient of resistance: 0.06 %/°C

Pin Configuration of the AGP2401 Thermopile

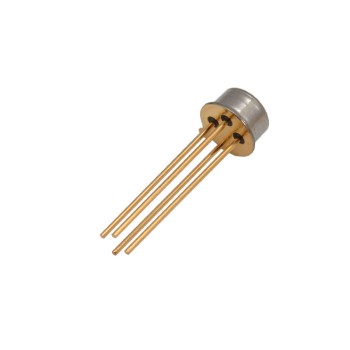

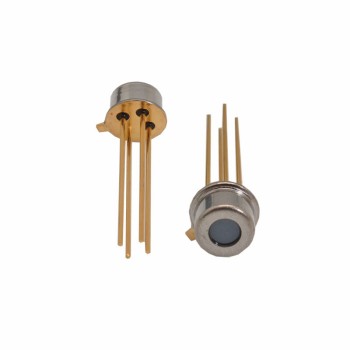

(Refer to the product image for pin numbering)

1. Pin 1: Thermopile Positive
2. Pin 2: NTC
3. Pin 3: Thermopile Negative
4. Pin 4: Ground

Documents:

AGP2401 Thermopile Datasheet
