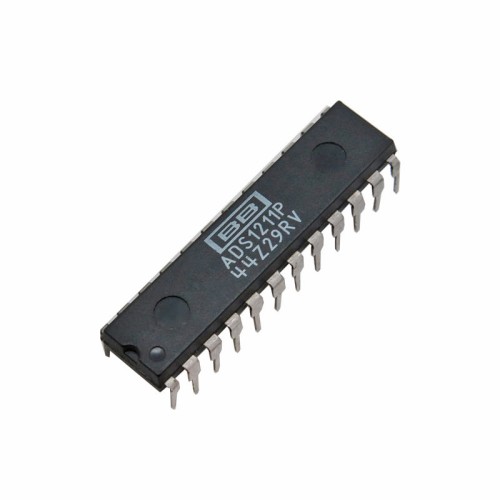

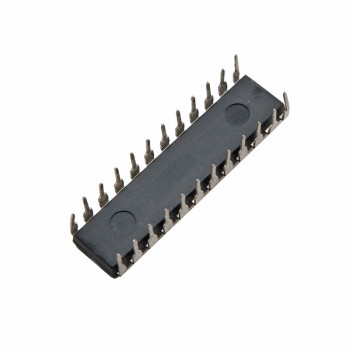

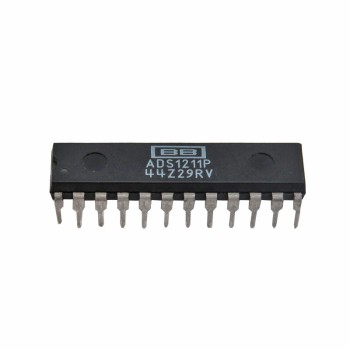

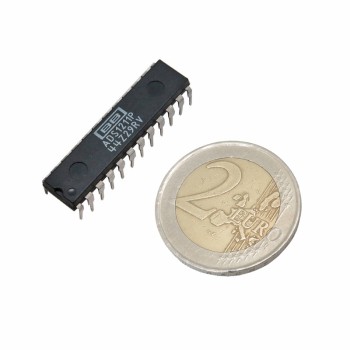

Analog to Digital Converter ADS1211P
- Product Code:SQ11578
- Availability: 1000
- $7.70
- Ex Tax:$7.70
Tags: ADC, Analog-to-Digital Converter, IC ADS1211P, Analog-to-Digital Converter ADS1211P
The Analog to Digital Converter ADS1211P, with high resolution and precision, is considered a 24-bit delta-sigma analog-to-digital converter and can be used over a wide range of inputs. The differential inputs allow for the measurement of low-level signals. The delta-sigma architecture in the ADS1211P IC covers a wide dynamic range, and the 22-bit resolution does not lose any data from the input signals, achieving 20-bit precision at a frequency of 100 Hz. This ADS1211P analog-to-digital converter is available in a 24-pin package and comes in DIP form, incorporating 4 multiplexers.
Application of ADC IC model ADS1112P:
- Industrial control processes
- Analysis equipment
- Smart transmitters
- Portable equipment
- Pressure transducers
Specifications of ADS1211P-ADC:
- Delta-sigma analog-to-digital converter
- 23-bit resolution at 10 Hz
- 20-bit resolution at 100 Hz
- Programmable gain amplifier
- Compatible with SPI
- Two-wire communication
- Programmable cutoff frequency at 15.6 kHz
- 4-channel multiplexer
