ESP8266 Adapter Board

ESP8266 Adapter Board
Click image for Gallery
  • Product Code:SQ12251
  • Availability: 1000
  • $0.50
  •
  • Ex Tax:$0.50
This product has a minimum quantity of 10
+
-

0 reviews / Write a review

Tags: Adapter board, ESP8266, ESP-01

Description:

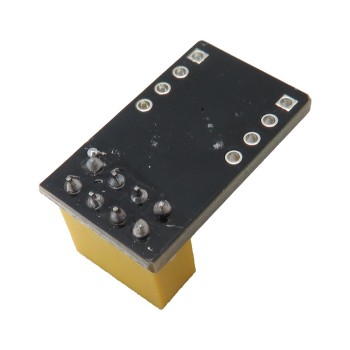

Using this small adapter board, ESP-01 type ESP8266 modules can be easily and stably connected to the board to run test circuits or control and program the ESP module. This little help will save you from loose wiring of ESP modules.
On the board there is a strip of sockets with 2 x 4 contacts with a pitch of 2.54 mm. Additionally, a 100nF ceramic capacitor is soldered between V+ and ground. Two rows of solder points spaced 12.7mm apart can be equipped with pin headers for board mounting.

Connection:
URAT adapter
3.3V VCC
3.3VCH-PD
TxRX
RXTX

Application:
Test circuits
Education
Electronic projects

Specifications:
Isolation capacitor 0.1μF
Baud rate: NL CR 15200ch
Voltage: 3.3V
