• Product Code:SQ5675
  • Availability: In Stock
  • $36.35
  • Ex Tax:$36.35

Tags: A9, GSM Module, GPRS Module, AI Thinker

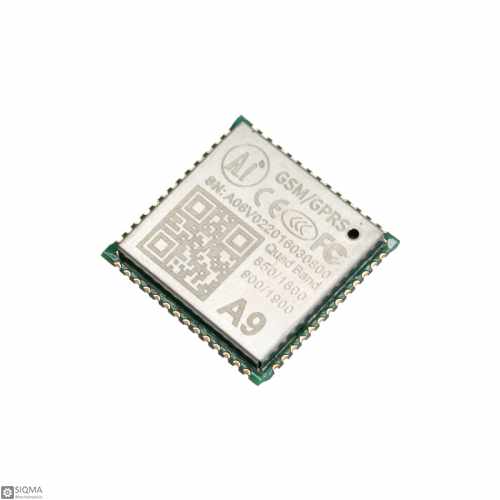

A9 chip is a complete quad-band GSM / GPRS module, 800/900 / 1800 / 1900MHze. Its stable performance, the appearance of compact, cost-effective, could meet the diverse needs of customers.
The cost reduction of the core chip provides users with a cost-effective IoT solution. Integrating protocol stacks such as GSM/GPRS inside, this module supports the basic phone voice call/SMS, serial to GPRS and GPS data transmission functions, which can be used in a wide range of applications.
Users could upload the information of module position to WeChat Mini-Programs or other APPs with only a SIM or IoT card, and then directly check the position information on the phones. A9G could also work with other devices by AT command. Besides, the module comes with 29 GPIOs and integrated SDK that could greatly facilitate private redevelopment.

A9 Module Application:

  1. IOT
  2. Remote localization
  3. Industrial wireless
  4. Wearable electronics
  5. Home automation
  6. electric power environment monitoring

AiThinker A9 GPRS GPS Module Features:

  1. Complete quad-band GSM/GPRS module, 800/900/1800/1900MHz
  2. Support GSM/GPRS (A9), GPRS+GPS+BDS (A9G)
  3. SMD package is adapted to facilitate the mass production test
  4. The sleep current is less than 2mA
  5. Support GPS, BDS (video) positioning (A9G only)
  6. Supports digital audio and analog audio, supports HR, FR, EFR, AMR voice coding
  7. Support voice calls and SMS messages
  8. Embedded network service protocol stack
  9. Support standard GSM07.07, 07.05 AT instruction and an extended instruction set
  10. Support USSD and PBCCH
  11. Support UART interface download


  1. A9 GSM GPRS GPS Chip datasheet Link
  2. A9 command Link
  3. A9 GPRS GPS module tutorial Link
  4. Ai-Thinker A9 module arduino Link

Package Include:
10 x A9 Chip

Electrical Parameters
Frequency 800/900/1800/1900MHz.
Input Current 1.14mA@DRX=5 1.03mA@DRX=9
Input Voltage 3.5 ~ 4.2V typical value 4.0V
Physical Parameters
Size 19.2mm x 18.8mm x 2.5mm
Weight 4g
Environmental Conditions and Safety
Operating Temprature -20°C ~ +75°C
