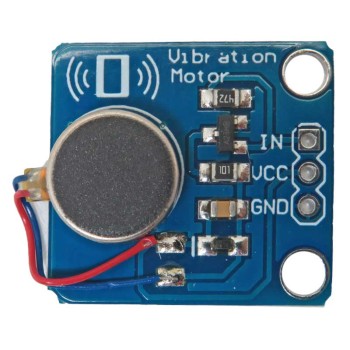

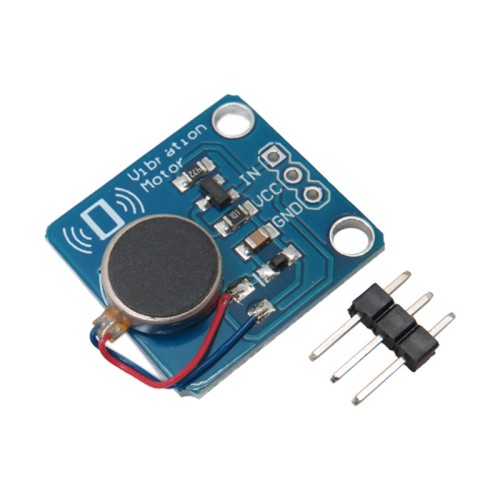

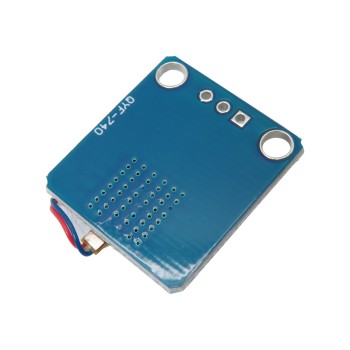

Vibration Motor Module [5V] [9000rpm]
![Vibration Motor Module [5V] [9000rpm]](https://store.siqma.com/image/cache/catalog/store/SQ8414/Vibration_Motor_Module_5V_9000rpm_f1dc8d7b6ae16c813-500x500.webp "Vibration Motor Module [5V] [9000rpm]")
![Vibration Motor Module [5V] [9000rpm]](https://store.siqma.com/image/cache/catalog/store/SQ8414/Vibration_Motor_Module_5V_9000rpm_1b69bbc501ef32a45-350x350.webp "Vibration Motor Module [5V] [9000rpm]")
![Vibration Motor Module [5V] [9000rpm]](https://store.siqma.com/image/cache/catalog/store/SQ8414/Vibration_Motor_Module_5V_9000rpm_4686e1d3c19855b27-350x350.webp "Vibration Motor Module [5V] [9000rpm]")
- Product Code:SQ8414
- Availability: 10000
- $0.90
- Ex Tax:$0.90
Tags: 5V Vibration Motor, Mini Vibration Motor, DC Motor, Mini Vibrator, DC Motor, Vibration module
Description:
This small built-in module uses a high-quality vibration motor. You can make some interesting Arduino projects such as an alarm, a notifier or even a vibrating robot! When the input is high, the motor will vibrate just like your cell phone.
You can control the ON/OFF or vibration intensity through digital signal or PWM signal.
The module adopts a high-quality mobile phone vibration motor; the vibration effect is evident, it is amplified and suitable as a non-audible indicator. The module can easily complete the conversion of the electrical signal to mechanical vibration.
Features:
Motor Voltage: 5V
Working Voltage: 3V ~ 5.3V
Speed: 9000rpm (Min)
Motor Current: 60mA (Max)
Starting Current: 90mA (Max)
Starting Voltage: 3.7V
Insulation Resistance: 10Mohm
Compatibility: Compatible with UNO R3/Mega2560
Great for DIY projects
Pin Number: 3 Pins
Size: 21mm x 30mm
Package Include:
1 x Vibration Motor Module
| Motor Specifications | |
| Motor voltage | 5V |
| Motor Current | 60mA (Max) |
| Speed | 9000rpm (Min) |
| Electrical Parameters | |
| Working Voltage | 3V ~ 5.3V DC |
| Board Parameters | |
| Pin Count | 3 Pinس |
| Physical Parameters | |
| Size | 21mm x 30mm |
