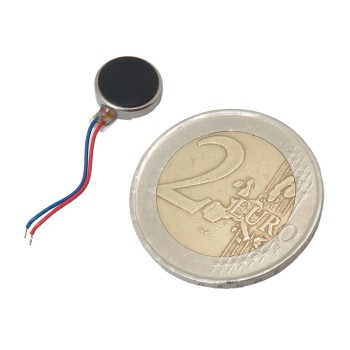

100 PCS 1020 Vibration Motor

Description:

Mini vibration motor powered by 3 V. Idle current consumption is 80 mA. The motor is 10 mm in diameter and 2.7 mm high. The module has two cables which are removed from the insulation.

1020 Vibration Motor is a DC brush motor which activates the vibration function of the phone when you receive a text message or a call.

Micro DC vibration motor Application:

1.  mobile phones
2. pagers
3. electronic vibration devices

10x2.7mm mobile phone vibrating motor Features:

1. Rated Voltage: 3 V
2. Rated Speed: 9000 rpm
3. Rated Current: 80 mA
4. Start Voltage: 2.3 V
5. Start Current: 120 mA
6. Model : 1020
7. Body Size : 10 x 2.6mm
8. Terminal Resistance: 33Ω

Documents:

1. Micro DC vibration motor disassembly Link
