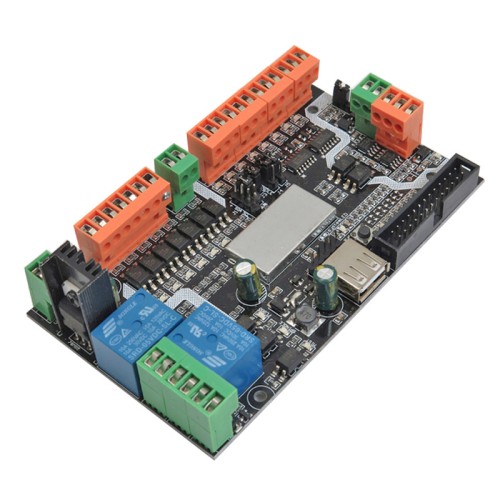

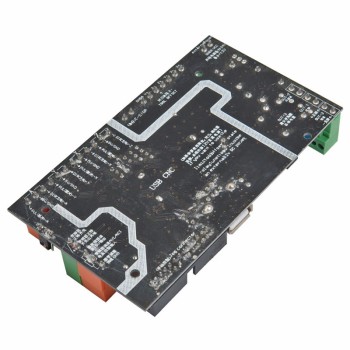

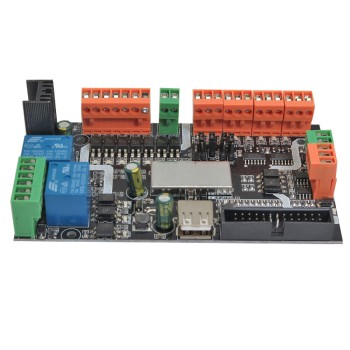

4 Axis CNCUSB USBCNC CNC USB MK1 USB CNC Controller Board

the CNC and laser controller board the heart and brain of a human, responsible for the control and coordination between various components. it acts as an interface between the computer and the cnc device drivers, protecting the computer port while also including additional controllers that the user can utilize as needed. this cnc controller board and the 4-axis laser cutter come with a usb port and support for the usbcnc software, making it very suitable for operating various cnc machines as well as 3d printers. it is compatible with windows versions from xp to 8 in both 32-bit and 64-bit editions. it also provides functionalities for starting, stopping, and pausing the program via the computer. one of the notable features of this board is its compatibility with the emc2 software. the use of opto-isolation in the cnc controller board and the 3/4-axis laser cutter has eliminated the limitations associated with relay usage in this product. this feature makes it significantly stronger than the mach3 board as well. among the most important characteristics of this controller board are its usb port and the ability to support usbcnc software, which has enhanced its popularity among users.

application of the USBCNC controller board:

1. cnc machine controller
2. laser machine controller

specifications of usbcnc-mk1:

1. support for four axis output signals with a frequency of approximately 25khz and a total maximum output frequency of 100khz
2. support for windows operating systems: win7-32 bit, xp, and win7-64 bit
3. computer hardware requirements: cpu 1.6ghz and ram 1g
4. net framework 3.5 sp1
5. graphics with opengl support
6. compliance with standards: esd, emi, and emc
7. support for g-code standards
8. usb version 2.0
