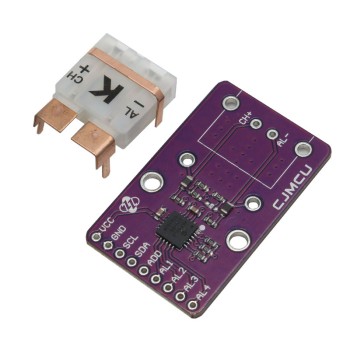

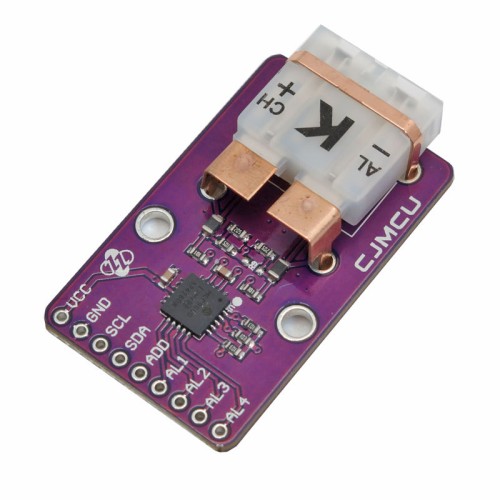

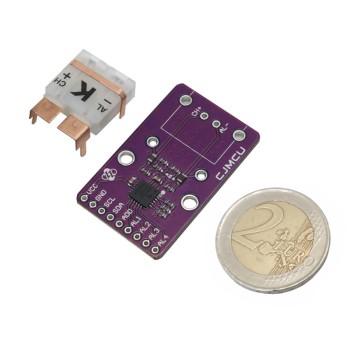

MCP9600 K-Type Thermocouple Converter

The MCP9600 K-Type Thermocouple Converter is a temperature module with cold-junction compensation that supports eight thermocouple types: K, J, T, N, S, E, B, and R. The MCP9600 Thermocouple allows users to program output registers, providing flexibility for various temperature applications.

The MCP9600 K-Type Thermocouple to Digital Converter features registers that enable low-power mode operation, suitable for energy-efficient systems.

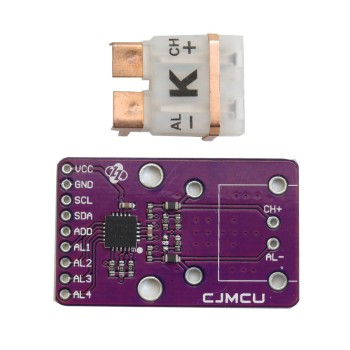

Equipped with four pins—AL1, AL2, AL3, and AL4—and proper configuration, it can connect to four system zones, controlling each output’s status, ideal for microcontroller-based setups.

Applications of the MCP9600 Thermocouple

Petrochemical temperature management
Hand-held measurement devices
Industrial equipment
Ovens
Engine thermal monitoring
Temperature detection racks

Specifications of the MCP9600 Thermocouple

Supports thermocouple types K, J, T, N, S, E, B, and R (NIST ITS-90 compliant)
Measurement accuracy: ±1.5°C max; cold junction accuracy ±1°C within 0°C to 85°C
Temperature resolution: 0.0625°C for both hot and cold junctions
Four programmable temperature alarm outputs
Programmable digital temperature filter
Low power operation with shutdown and burst modes, sampling 1 to 128 times
Two-wire I2C interface (100 kHz), supports up to eight devices on a single bus
Operating voltage: 2.7 V to 5.5 V
Typical operating current: 500 μA; shutdown current: 2 μA

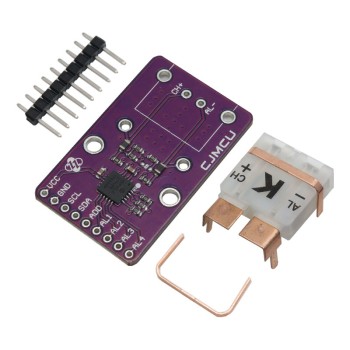

Note: The module includes a K-type interface socket that is not soldered.

Documents:

MCP9600 Thermocouple Datasheet
