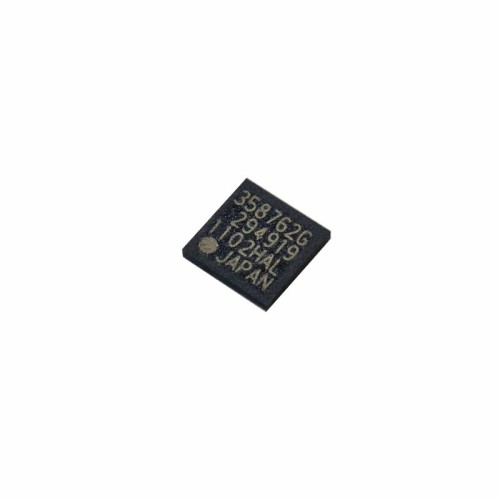

TC358762XBG Driver IC

TC358762XBG Driver IC
Click image for Gallery
  • Product Code:SQ10996
  • Availability: 1000
  • $0.10
  •
  • Ex Tax:$0.10
This product has a minimum quantity of 5
+
-


Tags: TC358762XBG IC, LED driver, display driver

Display drivers are interface components between the display and the processor, used to enable display functionality with specific technologies.

The TC358762XBG driver IC converts serial data streams from the DSI 1.01 port into parallel data for the display. The parallel output port supports communication protocols such as DBI or DPI. The host controls and commands the display by sending DSI packets to the IC.

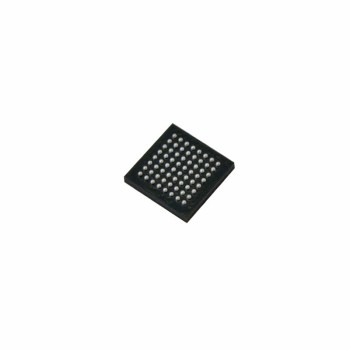

This IC comes in a 64-pin BGA package.

Applications of the TC358762XBG IC

  1. Display panels

Specifications of the TC358762XBG

  1. DSI receiver with 800 Mbps data rate
  2. Supports DBI host with write, read, and command functions

Power Supply:

  1. MIPI D-PHY: 1.2V
  2. I/O: 1.8V – 3.3V
  3. Core: 1.2V

Power Consumption:

  1. I/Os: 0.05 µW
  2. Core: 23 µW
  3. D-PHYs: 3 mW

Package:

  1. BGA, 64 pins
  2. 5.0mm × 5.0mm × 1mm
  3. 0.5mm ball pitch

Documents:

TC358762XBG driver IC Datasheet
