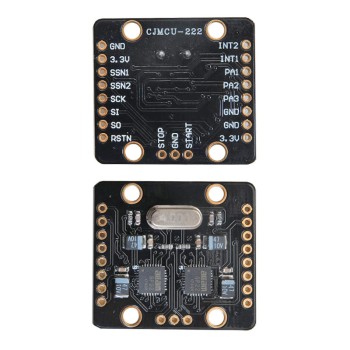

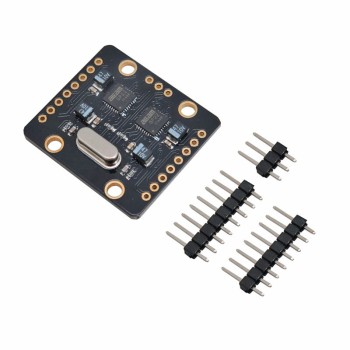

TDC-GP22 Laser Distance Sensor Module

The TDC-GP22 Laser Distance Sensor Module is an advanced sensor designed for precise distance measurements using laser technology. It features the ability to filter out unwanted signals, enhancing measurement accuracy and reliability across various applications. With high-speed and precise performance, this module can be easily integrated into a wide range of projects.

Equipped with a Pulse Generator, the module ensures rapid signal processing, allowing for fast and accurate distance detection in dynamic environments. This feature makes it particularly useful for applications that require real-time measurements and high responsiveness.

As a versatile Laser Sensor, the TDC-GP22 is widely used in robotics projects, industrial automation, and scientific applications. Its combination of precision, speed, and adaptability makes it an essential tool for engineers, researchers, and hobbyists alike.

Applications of the TDC-GP22 Laser Distance Sensor Module

1. Obstacle detection and robot navigation
2. Distance measurement in control systems
3. Motion sensing and range detection
4. Use in scientific and educational projects

Specifications of the Time to Digital Converter

1. Sensor Type: Laser (Time-of-Flight)
2. Measurement Range: 0.2 – 22 m
3. Accuracy: ±1.5 cm
4. Measurement Rate: 10 Hz (10 measurements per second)
5. Operating Voltage: 2.5 V to 3.6 V DC
6. Power Consumption: Approximately 50 mW during operation
7. Maximum Continuous Data Rate: 500 kHz

Documents:

TDC-GP22 sensor
